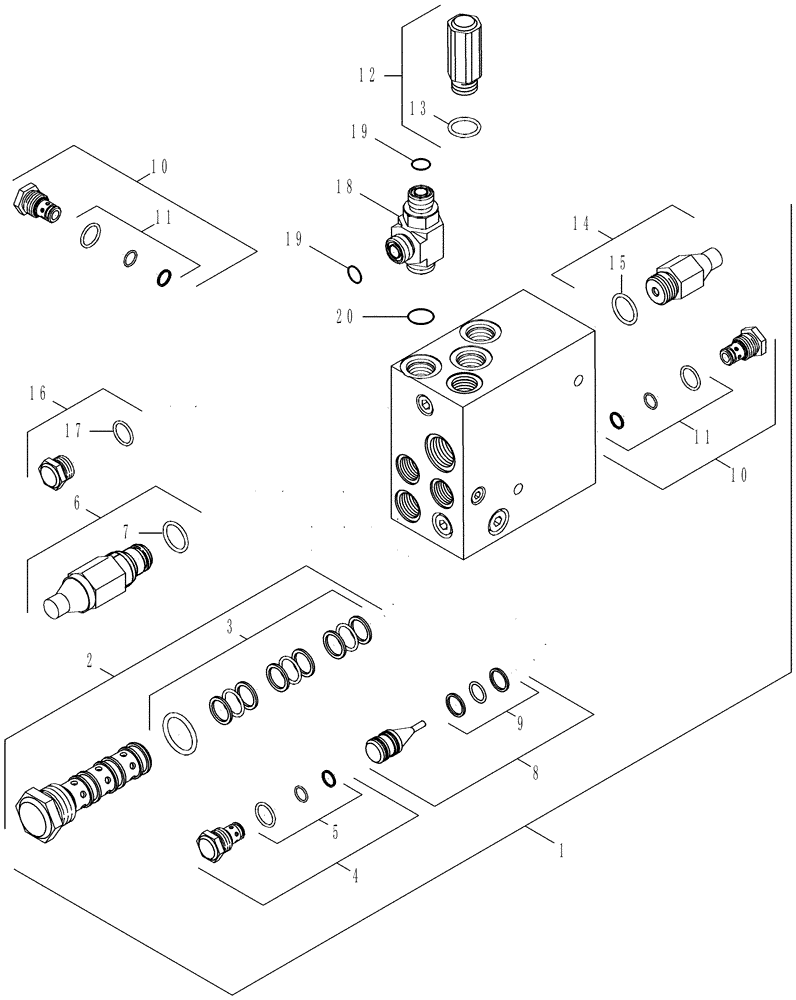

Запчасти Case IH LX162 (08-18) - VALVE, HYDRAULIC SELF-LEVELING MANIFOLD (08) - HYDRAULICS

1

87405096

CONTROL VALVE

Inc. 2 - 17

1шт.

2

87405095

VALVE, CHECK

Inc. 3

1шт.

3

396977A1

SEAL KIT

1шт.

4

440489A1

CARTRIDGE

Inc. 5

1шт.

5

396974A1

SEAL KIT

1шт.

6

87401219

CHECK VALVE

Inc. 7

1шт.

7

396978A1

SEAL KIT

Kit

1шт.

8

440490A1

PISTON

Inc. 9

1шт.

9

440491A1

SEAL KIT

1шт.

10

413216A1

CARTRIDGE

Inc. 11

2шт.

11

396974A1

SEAL KIT

2шт.

12

87402517

VALVE, CHECK

Inc. 13

1шт.

13

396974A1

SEAL KIT

1шт.

14

87402518

VALVE, CHECK

Inc. 15

1шт.

15

87402593

SEAL KIT

1шт.

16

NSS

NOT SOLD SEPARAT

Plug, Inc. 17

1шт.

17

396974A1

SEAL KIT

1шт.

18

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1 fc sl x 7/8 or x 7/8 or, Inc. 19, 20

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
