(08-15) - CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - WITH HYDRAULIC SELF-LEVEL - 448118A1

Запчасти Case IH LX162 (08-15) - CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - WITH HYDRAULIC SELF-LEVEL - 448118A1 (08) - HYDRAULICS

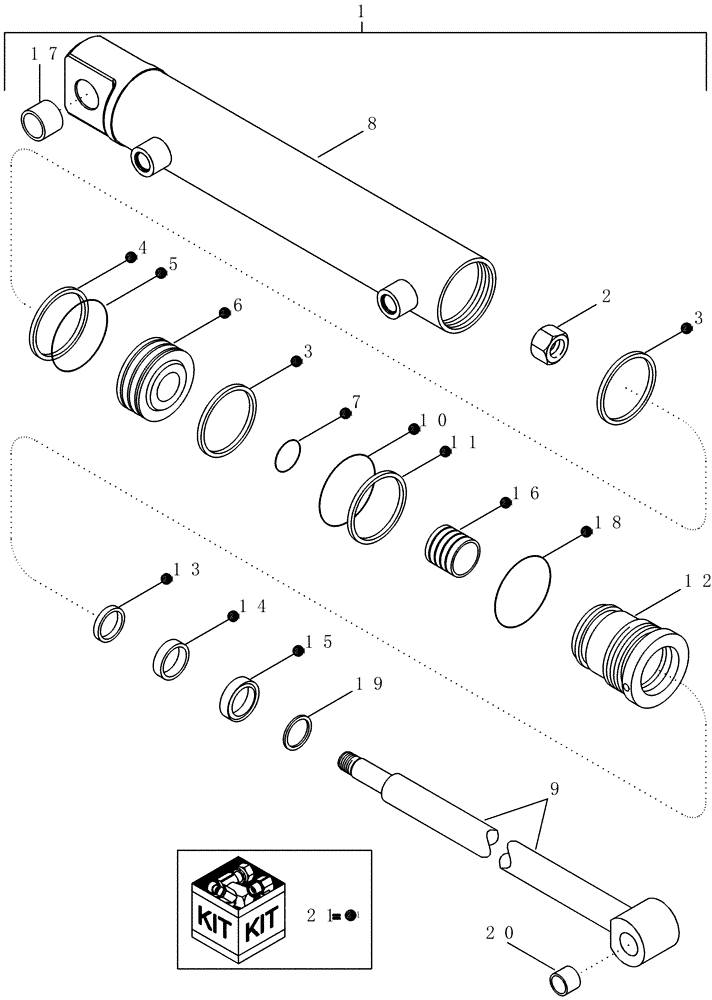

Схема запчастей Case IH LX162 - (08-15) - CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - WITH HYDRAULIC SELF-LEVEL - 448118A1 (08) - HYDRAULICS
10
21
4
21
8
16
20
15
5
21
9
21
17
21
21
18
21
21
21
6
3
13
21
1
14
21
21
21
2
11
21
21
12
19
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

448118A1

CYLINDER ASSY.

Bucket

1шт.

Without Self-Level

1шт.

With Hydraulic Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

348470A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

87405751

PISTON ROD

Inc. 20

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

348460A1

HEAD

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

318872A1

BUSHING

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

324206A1

BUSHING

2шт.

21

352544A1

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
