(08-14) - CYLINDER ASSEMBLY - LIFT - WITH MECHANICAL SELF-LEVEL - 448116A1

Запчасти Case IH LX162 (08-14) - CYLINDER ASSEMBLY - LIFT - WITH MECHANICAL SELF-LEVEL - 448116A1 (08) - HYDRAULICS

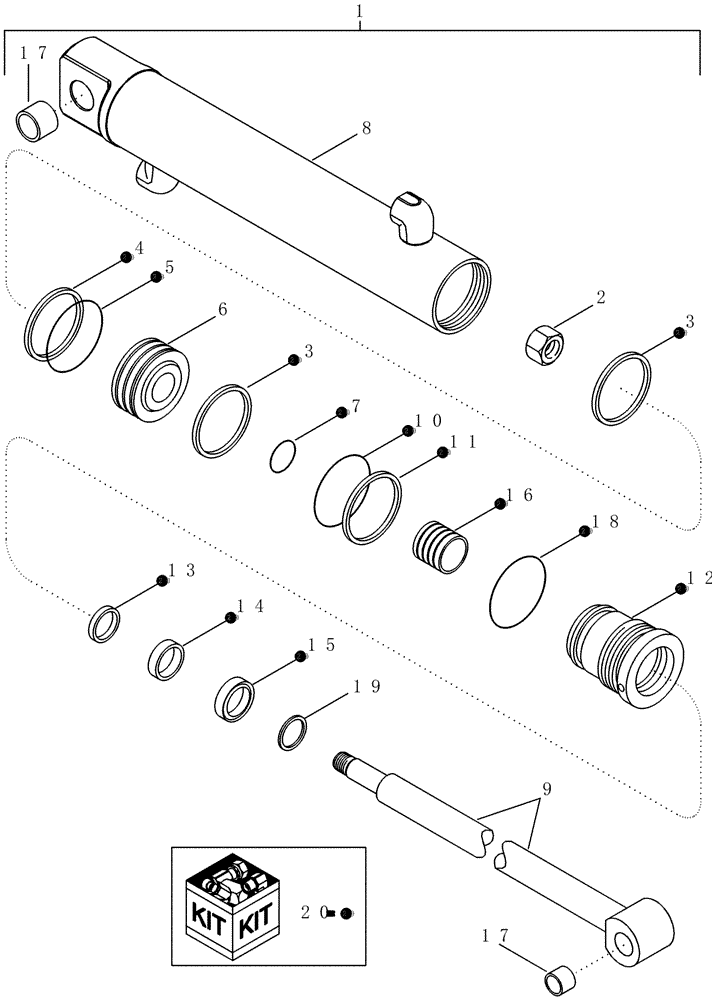

Схема запчастей Case IH LX162 - (08-14) - CYLINDER ASSEMBLY - LIFT - WITH MECHANICAL SELF-LEVEL - 448116A1 (08) - HYDRAULICS
20
20
8
7
20
20
20
13
15
5
17
19
9
20
11
20
20
2
20
4
18
16
20
6
1
3
10
20
20
20
12
20
17
20
14
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

448116A1

CYLINDER ASSY.

Lift

1шт.

With Mechanical Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

348470A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

87405750

PISTON ROD

Inc. 2 of Ref 17

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

360029A1

HEAD ASSY.

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

318872A1

BUSHING

4шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

353123A1

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
