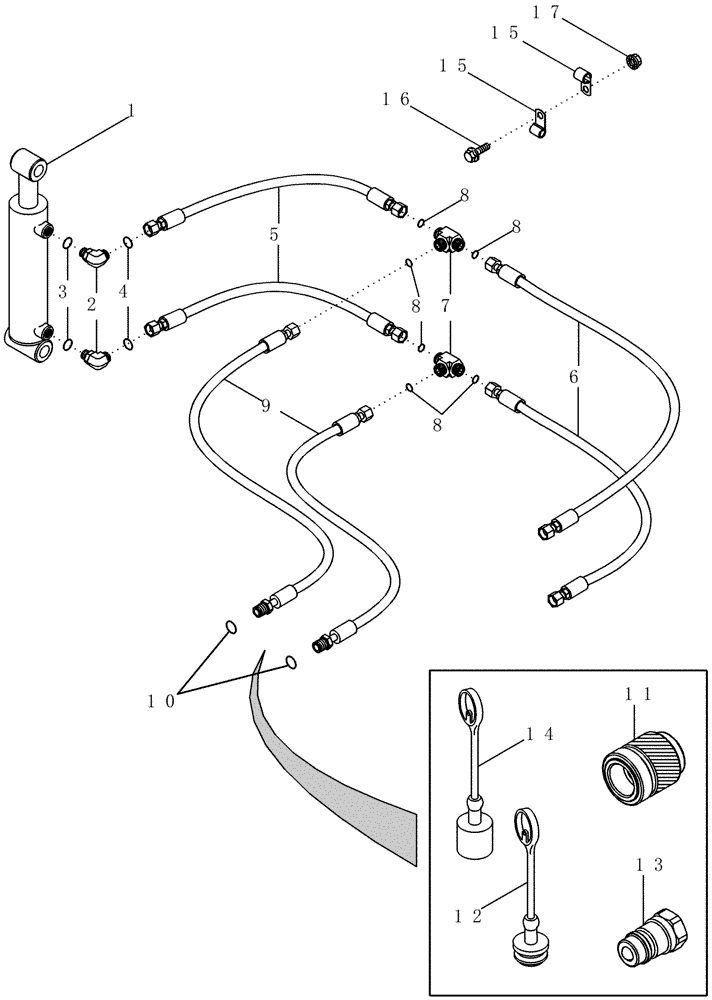

Запчасти Case IH LX162 (08-12) - HYDRAULICS - GRAPPLE (OPTIONAL) (08) - HYDRAULICS

1

437085A1

CYLINDER

Grapple

2шт.

See Figure 08-17

1шт.

2

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 3, 4

4шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

435959A1

HOSE,9.52 mm ID x 838.00 mm, SAE 100R17

2шт.

6

435960A1

HOSE,9.52 mm ID x 965.00 mm, SAE 100R17

2шт.

7

201-409

TEE,13/16"-16 ORFS

Inc. 8

2шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

435958A1

HOSE,9.52 mm ID x 1828.00 mm, SAE 100R17

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

399786A1

COUPLING

Hydraulic, Female

1шт.

12

327228A1

CAP

Male, Quick Coupler, Orange

1шт.

13

399491A1

QUICK MALE COUPLING

Hydraulic, Male

1шт.

14

333720A1

CAP

Female, Quick Coupler, Black

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

231-1446

NUT,3/8" - 16, Gr 5

2шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28 in)

2шт.
