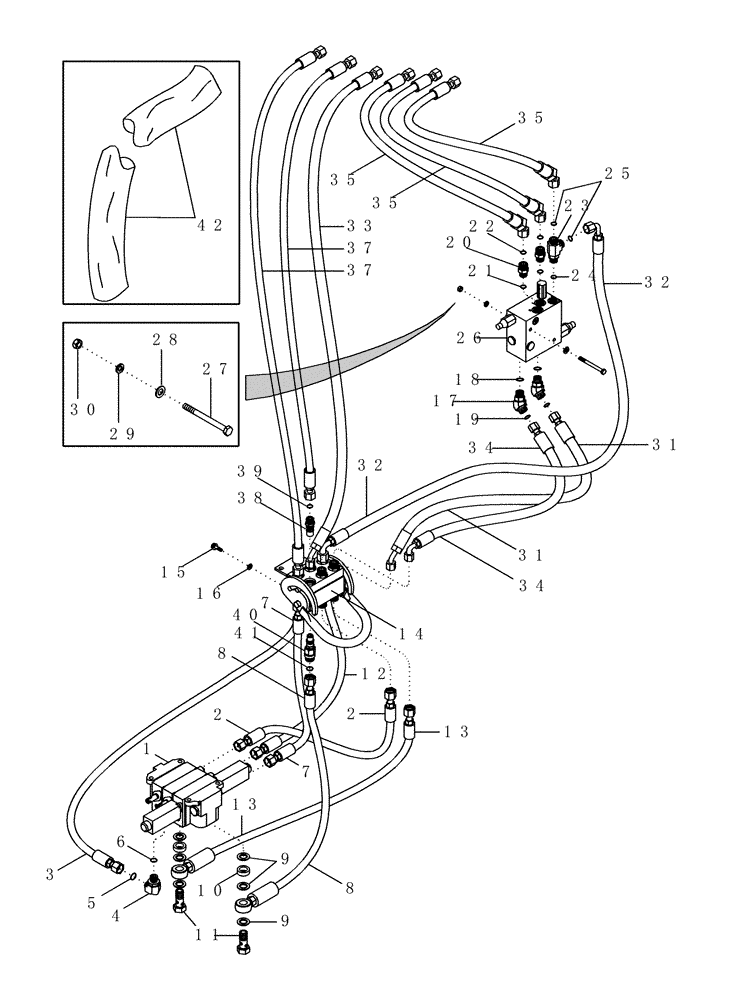

Запчасти Case IH LX162 (08-10) - HYDRAULICS - 3 FUNCTION WITH ONE LEVER QUICK CONNECT WITH HYDRAULIC SELF-LEVELING (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader, 3 Function

1шт.

2

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Rod End

1шт.

3

448418A1

HYDRAULIC HOSE,12.70 mm ID x 965.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Head End

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

3rd Function

1шт.

8

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

3rd Function

1шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

Banjo Fitting

6шт.

10

82020496

SPACER

Banjo Fitting

2шт.

11

86583640

BOLT

M18 x 1.5, Banjo Fitting

2шт.

12

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Bucket Cylinder Head End

1шт.

13

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

Valve To Bucket Cylinder Rod End

1шт.

14

REF

INSTRUCTION

Coupler Assembly, One Lever Quick Connect

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

892-11008

LOCK WASHER,8mm ID

4шт.

17

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

45, 5/8 or x 5/8 fc sl, Inc. 18, 19

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 21, 22

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1 fc sl x 7/8 or x 7/8 or, Inc. 24,25

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

26

87405096

CONTROL VALVE

1шт.

27

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

2шт.

28

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

231-4146

NUT,3/8"-16, GB

2шт.

31

448384A1

HYDRAULIC HOSE,15.80 mm ID x 1105.00 mm, SAE 100R17 Class 25

1шт.

32

448385A1

HYDRAULIC HOSE,15.80 mm ID x 1149.00 mm, SAE 100R17

1шт.

33

448386A1

HYDRAULIC HOSE,15.80 mm ID x 2629.00 mm, SAE 100R17 Class 25

1шт.

34

448387A1

HYDRAULIC HOSE,15.80 mm ID x 921.00 mm, SAE 100R17

1шт.

35

448383A1

HYDRAULIC HOSE,15.80 mm ID x 1245.00 mm, SAE 100R17 Class 25

3шт.

37

448440A1

HYDRAULIC HOSE,12.70 mm ID x 1981.00 mm, SAE 100R17 Class 25

3rd Function

2шт.

38

87431657

QUICK MALE COUPLING

Male, Inc.39

2шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

40

447080A1

COUPLING, QUICK, FEM

Female, Inc. 41

2шт.

41

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

42

87409366

HOSE PROTECTION

Sleeve, Hose, 3rd Function, 54 in

1шт.

42

87409365

HOSE PROTECTION

Sleeve, Hose, Upper, 30 in

1шт.

42

87409367

HOSE PROTECTION

Sleeve, Hose, Lower, 18 in

1шт.
