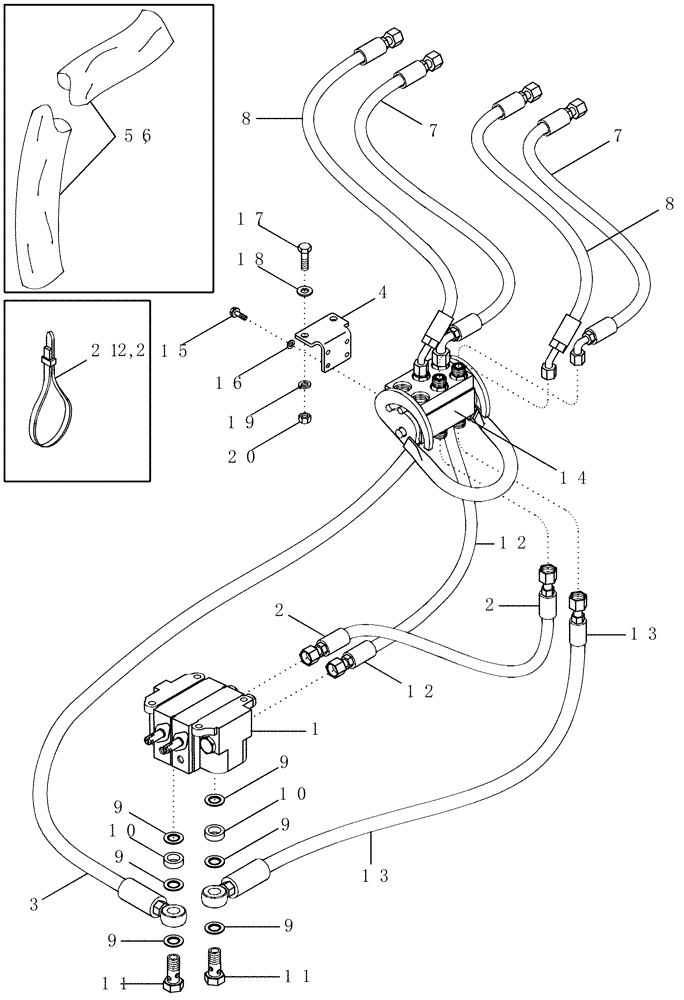

Запчасти Case IH LX156 (08-07) - HYDRAULICS - 2 FUNCTION WITH ONE LEVER QUICK CONNECT, MXU125 TRACTOR W/6 CYLINDER ENGINE (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader, 2 Function

1шт.

2

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Rod End

1шт.

3

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

Valve To Boom Cylinder Head End

1шт.

4

87456254

BRACKET

1шт.

5

87409364

HOSE PROTECTION

Sleeve, Hose, 4 Hose, 60 in, Upper

1шт.

6

87428113

SLEEVE

Hose, 4 Hose, 24 in, Lower

1шт.

7

448434A1

HYDRAULIC HOSE,15.80 mm ID x 1981.00 mm, SAE 100R17 Class 25

2шт.

8

448435A1

HYDRAULIC HOSE,15.80 mm ID x 1981.00 mm, SAE 100R17 Class 25

2шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

6шт.

10

82020496

SPACER

2шт.

11

86583640

BOLT

M18 x 1.5

2шт.

12

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Bucket Cylinder Head End

1шт.

13

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

Valve To Bucket Cylinder Rod End

1шт.

14

REF

INSTRUCTION

Coupler Assembly, One Lever Quick Connect

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

892-11008

LOCK WASHER,8mm ID

4шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

18

495-11053

WASHER,1/2", SAE

2шт.

19

492-11050

LOCK WASHER,1/2"

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

2шт.

21

291207C1

CLAMP

8шт.

22

1985078C2

SET OF PARTS

Color Tie Straps

1шт.
