(08-05) - HYDRAULICS - 2 FUNCTION WITH ONE LEVER QUICK CONNECT, MXU100 AND MXU110 TRACTOR W/4 CYLINDER ENGINE

Запчасти Case IH LX156 (08-05) - HYDRAULICS - 2 FUNCTION WITH ONE LEVER QUICK CONNECT, MXU100 AND MXU110 TRACTOR W/4 CYLINDER ENGINE (08) - HYDRAULICS

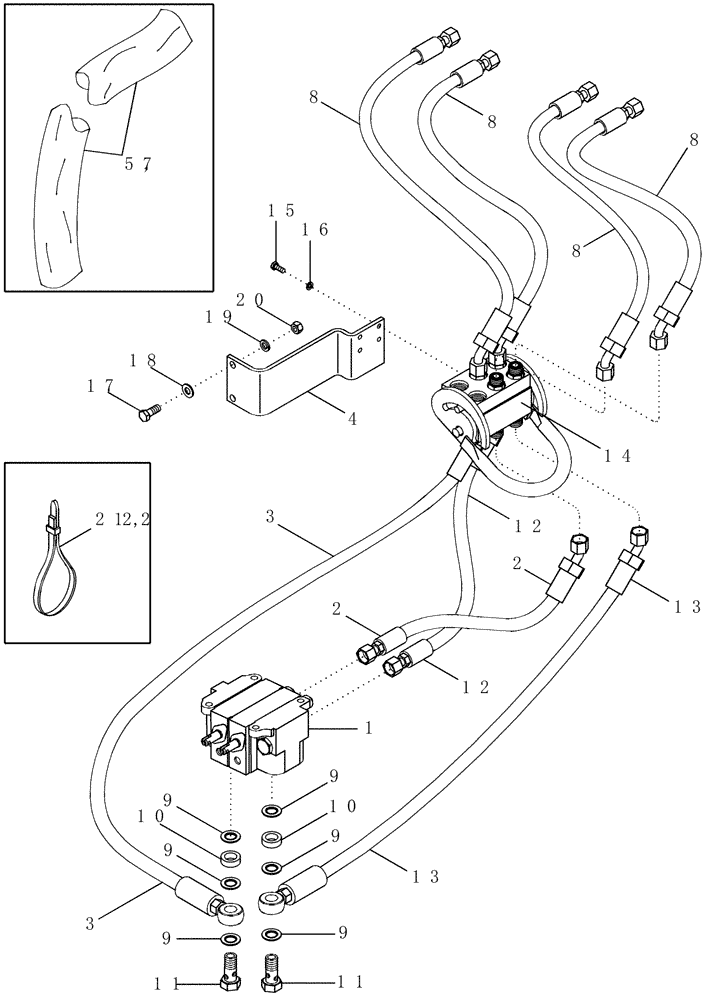

Схема запчастей Case IH LX156 - (08-05) - HYDRAULICS - 2 FUNCTION WITH ONE LEVER QUICK CONNECT, MXU100 AND MXU110 TRACTOR W/4 CYLINDER ENGINE (08) - HYDRAULICS
4
8
3
18
12
11
15
16
10
17
19
9
12
2
20
10
9
9
8
1
9
13
8
9
8
13
7
22
3
2
9
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve, Loader, 2 Function

1шт.

2

87428714

HYDRAULIC HOSE,12.70 mm ID x 1092.20 mm, SAE 100R17 Class 25 Type 1

Valve to Boom Cylinder Rod End

1шт.

3

87428713

HYDRAULIC HOSE,12.70 mm ID x 1219.20 mm, SAE 100R17 Class 25 Type 1

Valve to Boom Cylinder Head End

1шт.

4

87428701

BRACKET

1шт.

5

87409364

HOSE PROTECTION

Sleeve, Hose, 4 Hose, 60 in, Upper

1шт.

7

87428861

SLEEVE

Hose, 4 Hose, 35 in, Lower

1шт.

8

87428715

HOSE,15.80 mm ID x 1701.80 mm, SAE 100R17 CLASS 25 TYPE 1

4шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

6шт.

10

82020496

SPACER

2шт.

11

86583640

BOLT

M18 x 1.5

2шт.

12

87428714

HYDRAULIC HOSE,12.70 mm ID x 1092.20 mm, SAE 100R17 Class 25 Type 1

Valve to Bucket Cylinder Head End

1шт.

13

87428713

HYDRAULIC HOSE,12.70 mm ID x 1219.20 mm, SAE 100R17 Class 25 Type 1

Valve to Bucket Cylinder Rod End

1шт.

14

REF

INSTRUCTION

Coupler Assembly, One Lever Quick Connect

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

892-11008

LOCK WASHER,8mm ID

4шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

18

495-11053

WASHER,1/2", SAE

2шт.

19

492-11050

LOCK WASHER,1/2"

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

2шт.

21

291207C1

CLAMP

8шт.

22

1985078C2

SET OF PARTS

Color Tie Straps

1шт.
