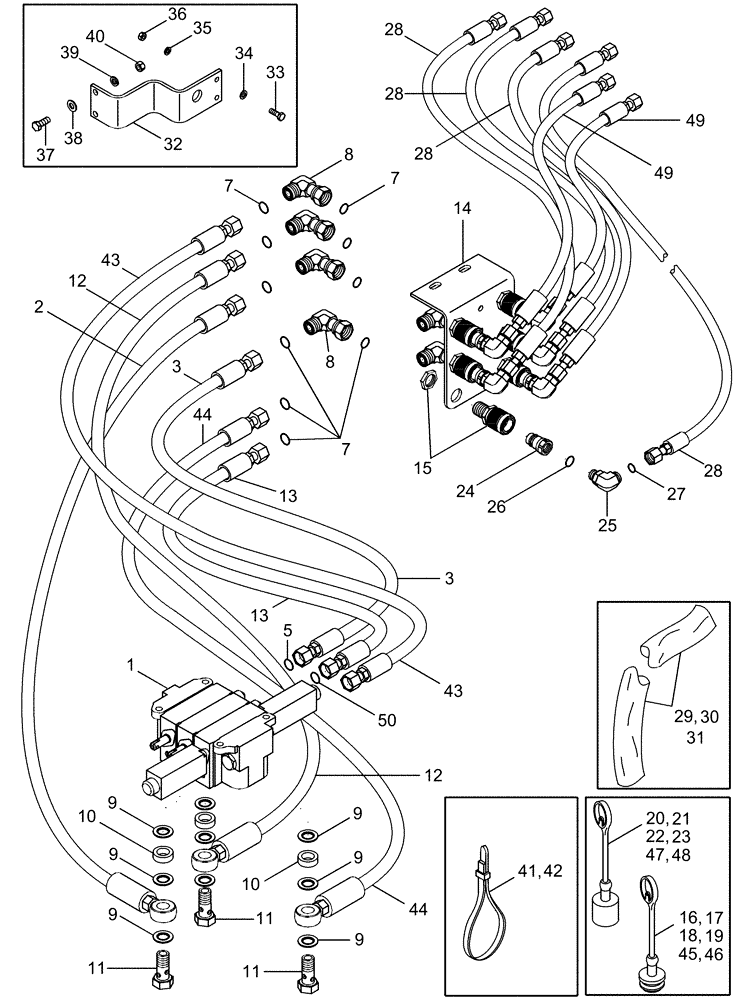

Запчасти Case IH LX156 (08-04) - HYDRAULICS - 3 FUNCTION STANDARD QUICK COUPLER (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader, 3 Function

1шт.

2

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

Valve To Boom Cylinder Head End

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

2

448403A1

HYDRAULIC HOSE,12.7mm ID x 914mm L, SAE 100R17

Valve To Boom Cylinder Head End

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

3

448402A1

HYDRAULIC HOSE,12.70 mm ID x 851.00 mm, SAE 100R17 Class 25

Valve To Boom Cylinder Rod End

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

3

448401A1

HYDRAULIC HOSE,12.70 mm ID x 660.00 mm, SAE 100R17

Valve To Boom Cylinder Rod End

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

12шт.

8

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 7

6шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

9шт.

10

82020496

SPACER

3шт.

11

86583640

BOLT

M18 x 1.5

3шт.

12

87428543

HOSE

Valve To Bucket Cylinder Rod End

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

12

448403A1

HYDRAULIC HOSE,12.7mm ID x 914mm L, SAE 100R17

Valve To Bucket Cylinder Rod End

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

13

448417A1

HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25

Valve To Bucket Cylinder Head End

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

13

448401A1

HYDRAULIC HOSE,12.70 mm ID x 660.00 mm, SAE 100R17

Valve To Bucket Cylinder Head End

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

14

395326A2

BRACKET

1шт.

15

399490A1

COUPLING

Female, Inc. 7

6шт.

16

327232A1

CAP

Male, Green

1шт.

17

327227A1

CAP

Male, Blue

1шт.

18

327229A1

CAP

Male, Yellow

1шт.

19

327231A1

CAP

Male, Red

1шт.

20

333722A1

CAP

Female, Green

1шт.

21

333717A1

CAP

Female, Blue

1шт.

22

333719A1

CAP

Female, Yellow

1шт.

23

333721A1

CAP

Female, Red

1шт.

24

399491A1

QUICK MALE COUPLING

Male

6шт.

25

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 26, 27

6шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

28

87428550

HOSE

4шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

28

448404A1

HYDRAULIC HOSE,15.80 mm ID x 2032.00 mm, SAE 100R17 Class 25

4шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

29

87409364

HOSE PROTECTION

Sleeve, Hose, 4 Hose, 60 in

1шт.

30

87428113

SLEEVE

Hose, 4 Hose, 24 in, Lower

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

30

87428156

SLEEVE

Hose, 4 Hose, 18 in, Lower

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

31

87409366

HOSE PROTECTION

Sleeve, 2 Hose, Upper

1шт.

31

87428115

SLEEVE

2 Hose, 24 in, Lower

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

31

87428155

SLEEVE

2 Hose, 18 in, Lower

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

32

87427836

BRACKET

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

33

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

35

892-11010

LOCK WASHER,M10

2шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

36

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

37

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

38

495-11053

WASHER,1/2", SAE

2шт.

39

492-11050

LOCK WASHER,1/2"

2шт.

40

425-108

NUT,1/2" - 13, Gr 5

2шт.

41

291207C1

CLAMP

Strap 14 inch

6шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

41

291207C1

CLAMP

Strap 14 inch

14шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

42

1985078C2

SET OF PARTS

Color Tie Straps

1шт.

43

448418A1

HYDRAULIC HOSE,12.70 mm ID x 965.00 mm, SAE 100R17 Class 25

3rd Function

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

43

87428154

HOSE

3rd Function

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

44

87428605

HOSE

3rd Function

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

44

448419A1

HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17

3rd Function

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

45

327230A1

CAP

Male, Black

1шт.

46

327228A1

CAP

Male, Orange

1шт.

47

333720A1

CAP

Female, Black

1шт.

48

333718A1

CAP

Female, Orange

1шт.

49

448439A1

HYDRAULIC HOSE,12.70 mm ID x 1829.00 mm, SAE 100R17 Class 25

Valve to 3rd Function

2шт.

50

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
