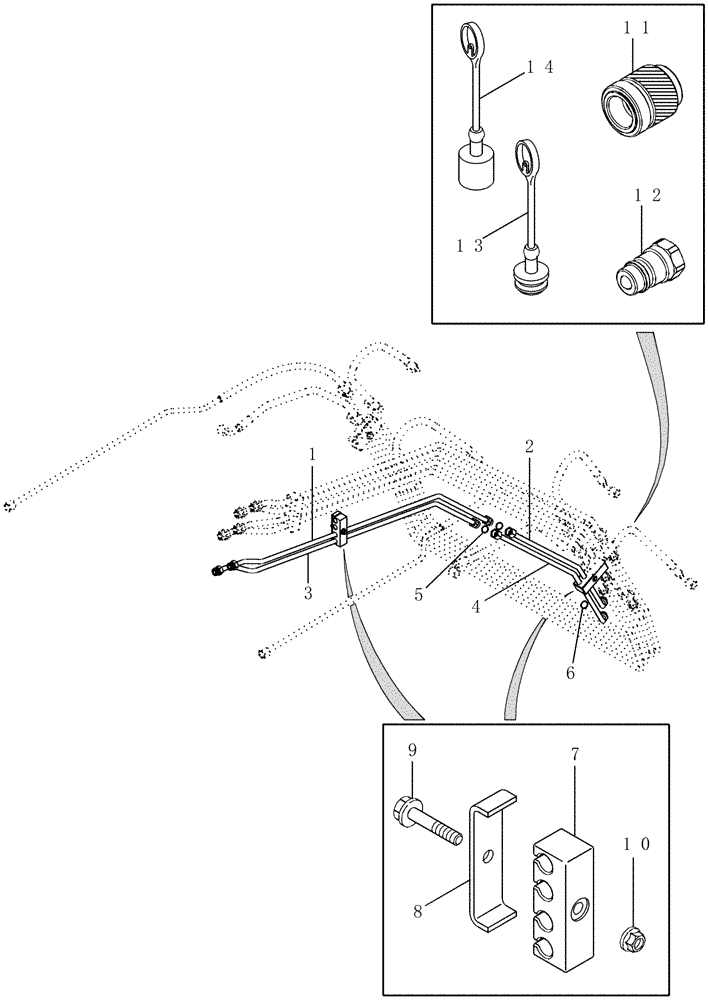

Запчасти Case IH LX156 (08-02) - HYDRAULICS - AUXILIARY 3RD FUNCTION (08) - HYDRAULICS

1

87423694

HYD TUBE,12.70 mm OD x 1060 mm L

Top, Upper Boom

1шт.

2

87423695

HYD TUBE,.5" OD

Top, Lower Boom

1шт.

3

87423692

HYD TUBE,12.70 mm OD x 1001 mm L

Bottom, Upper Boom

1шт.

4

87423693

HYD TUBE,12.70 mm OD x 708 mm L

Bottom, Lower Boom

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

7

86994419

CLAMP

2шт.

8

86994420

LOCKING PLATE

2шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

399786A1

COUPLING

Hydraulic, Female

1шт.

Installed on REF 4

1шт.

12

399491A1

QUICK MALE COUPLING

Hydraulic, Male

1шт.

Installed on REF 2

1шт.

13

327230A1

CAP

Male, Black

1шт.

Installed on REF 4

1шт.

14

333718A1

CAP

Female, Orange

1шт.

Installed on REF 2

1шт.
