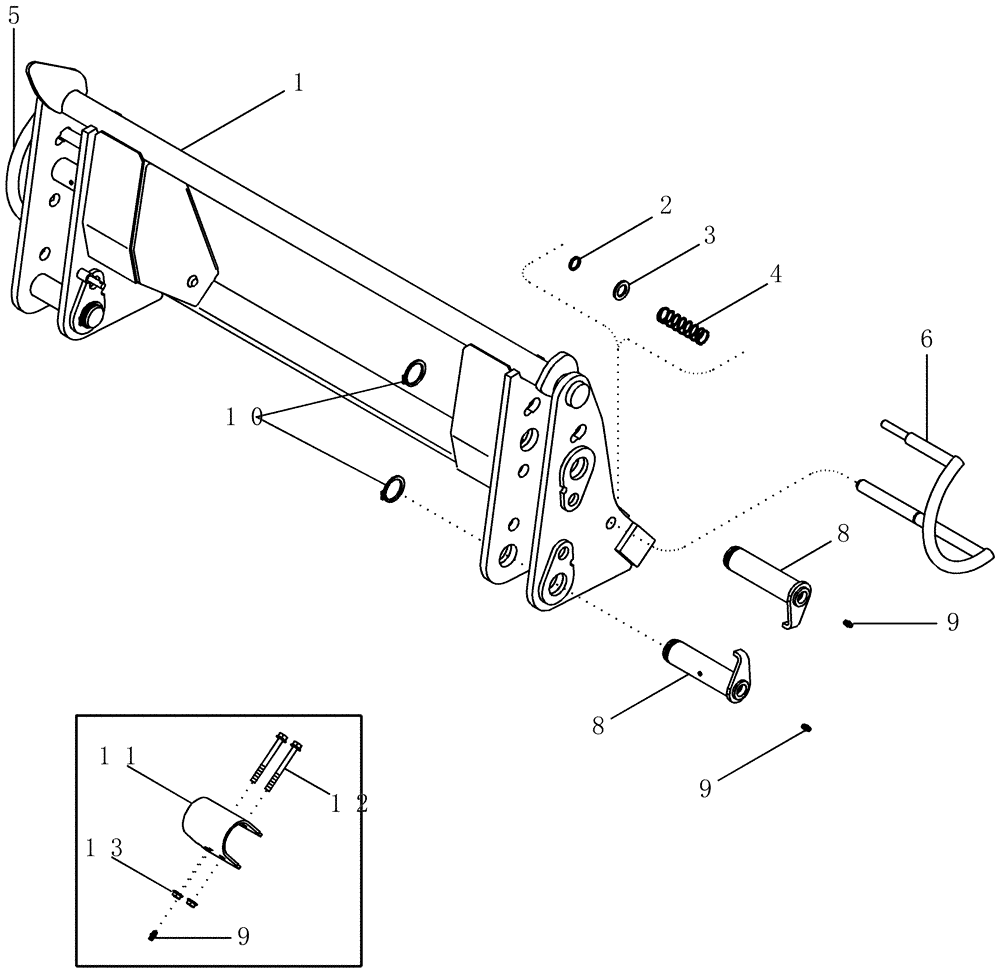

Запчасти Case IH LX156 (09-10) - QUICK ATTACH ADAPTER (09) - CHASSIS/ATTACHMENTS

1

87450969

BRACKET

EZ Change Quick Coupler

1шт.

2

348241A1

RING, SNAP

RING SNAP

2шт.

3

495-81039

WASHER,25/32" x 1 1/4" x .120"

2шт.

4

348239A2

SPRING

2шт.

5

321442A2

HANDLE

Left

1шт.

6

321445A2

HANDLE

Right

1шт.

8

87447585

PIVOT PIN,38.1mm OD x 157mm L

w/Flag; 38.1 Diameter

4шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

10

103-16150

SNAP RING,#150, Ext

4шт.

11

87439290

PLATE

2шт.

12

844-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

4шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

REF

INSTRUCTION

PLATE, EZ Change Quick Coupler Adaptor

1шт.

Order 716986006 From Machinery Price List

1шт.
