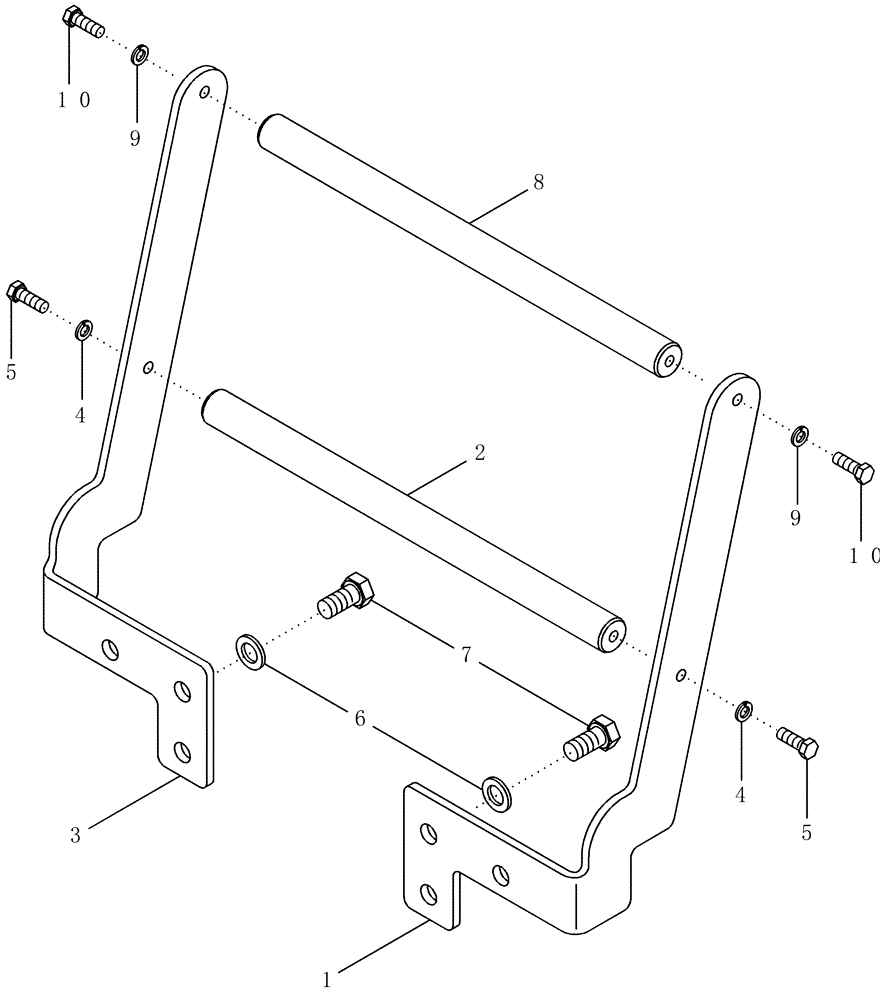

Запчасти Case IH LX156 (09-07) - PROTECTIVE ASSEMBLY - GRILLE, 2WD TRACTORS (09) - CHASSIS/ATTACHMENTS

1

87432330

BRACKET

Grille Guard, RH

1шт.

2

345812A1

BAR

Grille Guard Support

1шт.

3

87432331

BRACKET

Grille Guard, LH

1шт.

4

892-11012

LOCK WASHER,M12

2шт.

5

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

6

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

7

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

6шт.

8

345812A1

BAR

Grille Guard Support (If Equipped)

1шт.

9

892-11012

LOCK WASHER,M12

2шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.
