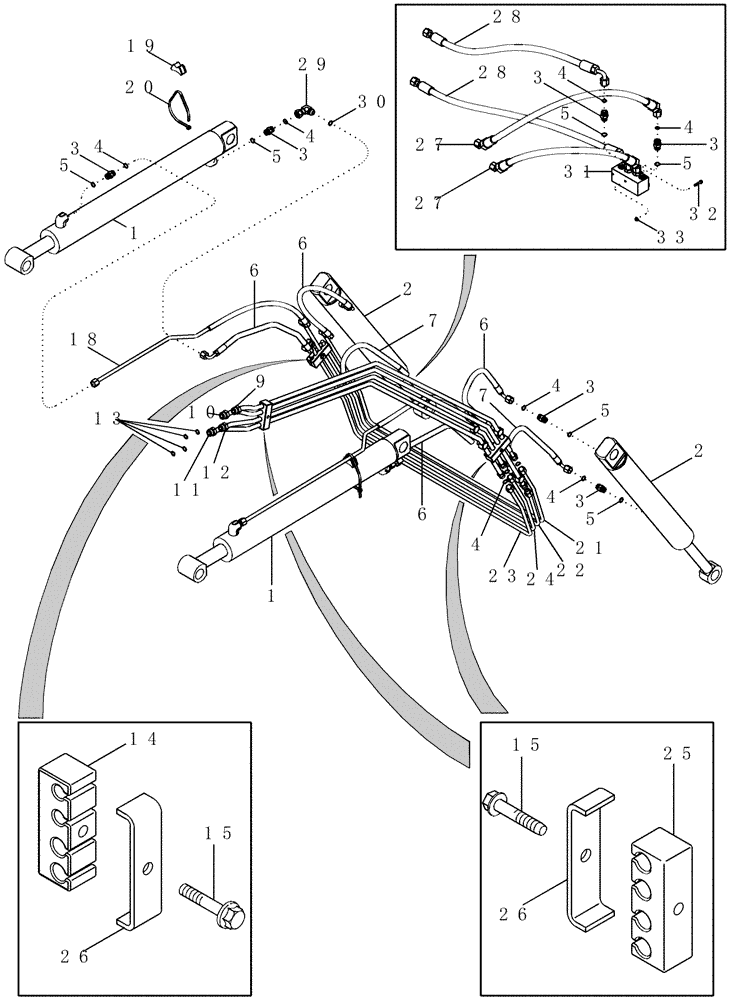

Запчасти Case IH LX156 (08-01) - HYDRAULICS - LOADER FRAME (08) - HYDRAULICS

1

87424629

LIFT CYLINDER,Double Acting, 44.45mm Rod, 672.34mm Stroke

2шт.

2005 and Prior

1шт.

Without Self-Level

1шт.

1

87341468

CYLINDER,Double Acting, 44.45mm Rod, 672.3mm Stroke

Lift

2шт.

2006

1шт.

Without Self-Level

1шт.

1

87424663

LIFT CYLINDER

2шт.

2005 and Prior

1шт.

With Mechanical Self-Level

1шт.

1

87341478

CYLINDER,Double Acting, 44.45mm Rod, 575.6mm Stroke

Lift

2шт.

2006

1шт.

With Mechanical Self-Level

1шт.

2

448118A1

CYLINDER ASSY.

Bucket

2шт.

2005 and Prior

1шт.

Without Self-Level

1шт.

2

87341472

CYLINDER,Double Acting, 38.1mm Rod, 546.1mm Stroke

Bucket

2шт.

2006

1шт.

Without Self-Level

1шт.

2

451461A1

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 528.32mm Stroke

Bucket

2шт.

2005 and Prior

1шт.

With Mechanical Self-Level

1шт.

2

87341487

CYLINDER,Double Acting, 38.1mm Rod, 528.3mm Stroke

Bucket

2шт.

2006

1шт.

With Mechanical Self-Level

1шт.

3

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 4, 5

12шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

28шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

12шт.

6

345381A1

HOSE,9.53mm ID x 609.6mm L, SAE 100R17

609 mm (24 in)

6шт.

7

87430019

HOSE ASSY.

838 mm (33 in)

2шт.

9

87423372

HYD TUBE,15.88 mm OD x 1411 mm L

Bucket Cylinder, Upper, Head End

1шт.

10

87423373

HYD TUBE,15.88 mm OD x 1524 mm L

Bucket Cylinder, Upper, Rod End

1шт.

11

87423375

HYD TUBE,15.88 mm OD x 1474 mm L

Lift Cylinder, Upper, Head End

1шт.

12

87423374

HYD TUBE,15.88 mm OD x 1446 mm L

Lift Cylinder, Upper, Rod End

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

14

86994419

CLAMP

1шт.

15

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3/8 x 2-1/2

3шт.

18

87424152

HYD TUBE,.5" OD

Lift Cylinder

2шт.

19

D38648

BLOCK

2шт.

20

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

21

86994390

HYD TUBE,0.50" OD

Bucket Cylinder, Lower, Head End

1шт.

22

86994392

HYD TUBE,0.50" OD

Bucket Cylinder, Lower, Rod End

1шт.

23

86994396

HYD TUBE,0.50" OD

Lift Cylinder, Lower, Head End

1шт.

24

86994394

HYD TUBE,0.50" OD

Lift Cylinder, Lower, Rod End

1шт.

25

86994418

CLAMP

2шт.

26

86994420

LOCKING PLATE

3шт.

27

86983672

HOSE ASSY.

Boom Cylinder To Relief Valve

2шт.

28

86983671

HOSE ASSY.

Bucket Cylinder To Relief Valve

2шт.

29

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 30

2шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

31

87431648

HYDRAULIC VALVE

1шт.

32

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

33

231-4144

NUT,1/4"-20, GB

2шт.

34

87377190

REPAIR KIT

Piston - Contains Piston (Not Shown)

1шт.

For Cylinder 87341478

1шт.

35

87379209

KIT

Head Repair - Contains Head (Not Shown)

1шт.

For Cylinder 87341478

1шт.

36

87379214

KIT

Rod Repair - Contains Rod and Nut (Not Shown)

1шт.

For Cylinder 87341478

1шт.

37

87379210

SEAL KIT

Inc. 38 - 47, (Not Shown)

1шт.

For Cylinder 87341478

1шт.

38

NSS

NOT SOLD SEPARAT

O-ring

1шт.

39

NSS

NOT SOLD SEPARAT

O-ring

1шт.

40

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

41

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

42

NSS

NOT SOLD SEPARAT

O-ring

1шт.

43

NSS

NOT SOLD SEPARAT

Washer

1шт.

44

NSS

NOT SOLD SEPARAT

Wiper

1шт.

45

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

46

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

47

NSS

NOT SOLD SEPARAT

Buffer Seal

1шт.
