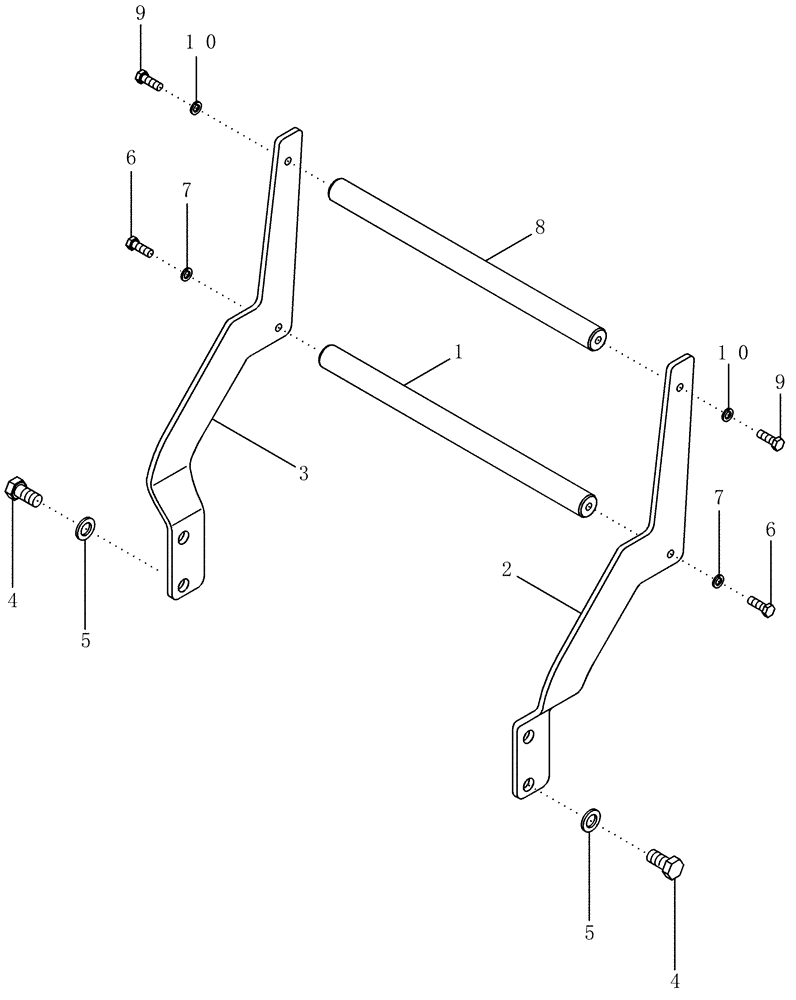

Запчасти Case IH LX156 (09-06) - PROTECTIVE ASSEMBLY - GRILLE, MFD TRACTORS (09) - CHASSIS/ATTACHMENTS

1

345812A1

BAR

Grille

1шт.

2

87424138

PLATE

Right Hand

1шт.

3

87424139

PLATE

Left Hand

1шт.

4

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

4шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

7

892-11012

LOCK WASHER,M12

2шт.

8

345812A1

BAR

Grille (If Equipped)

1шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

10

892-11012

LOCK WASHER,M12

2шт.
