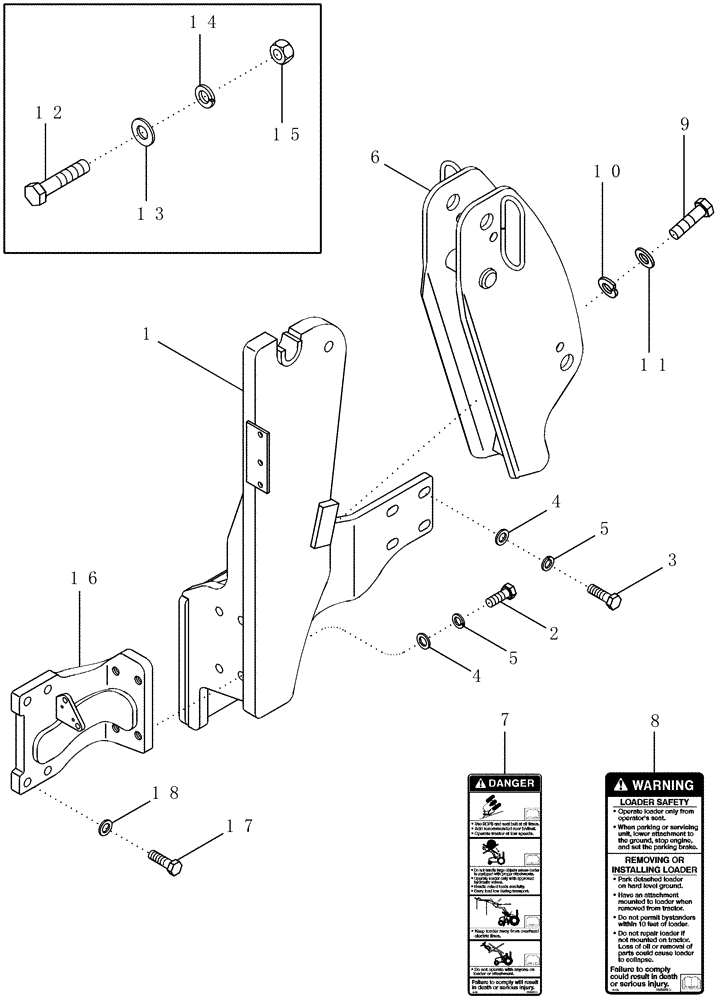

Запчасти Case IH LX156 (09-05) - MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

87429760

BRACKET

RH (Shown)

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

1

87430419

BRACKET

RH

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

1

87429759

BRACKET

LH

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

1

87430418

BRACKET

LH

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

2

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

8шт.

3

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

8шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

5

892-11020

LOCK WASHER,M20

16шт.

6

87349381

RH, Inc. Decals Ref 7, 8

1шт.

Without Self-Level

1шт.

6

87349380

LH, Inc. Decals Ref 7, 8

1шт.

Without Self-Level

1шт.

6

87349327

RH, Inc. Decals Ref 7, 8

1шт.

With Mechanical Self-Level

1шт.

6

87349325

LH, Inc. Decals Ref 7, 8

1шт.

With Mechanical Self-Level

1шт.

7

86979960

DANGER DECAL

Safety

2шт.

8

86979962

WARNING DECAL

Safety

2шт.

9

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

2шт.

10

492-11100

LOCK WASHER,1"

2шт.

11

496-31106

WASHER,1 1/16" x 2" x .219", HDN

2шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

13

495-11053

WASHER,1/2", SAE

2шт.

14

492-11050

LOCK WASHER,1/2"

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

2шт.

16

87429764

BRACKET

Mounting, RH (Shown)

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

16

87429763

BRACKET

Mounting, LH

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

16

87430417

BRACKET

Mounting, RH

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

16

87430416

BRACKET

Mounting, LH

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

17

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

8шт.

Apply Loctite 242 Threadlocker to Threads Prior to Installation

1шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.
