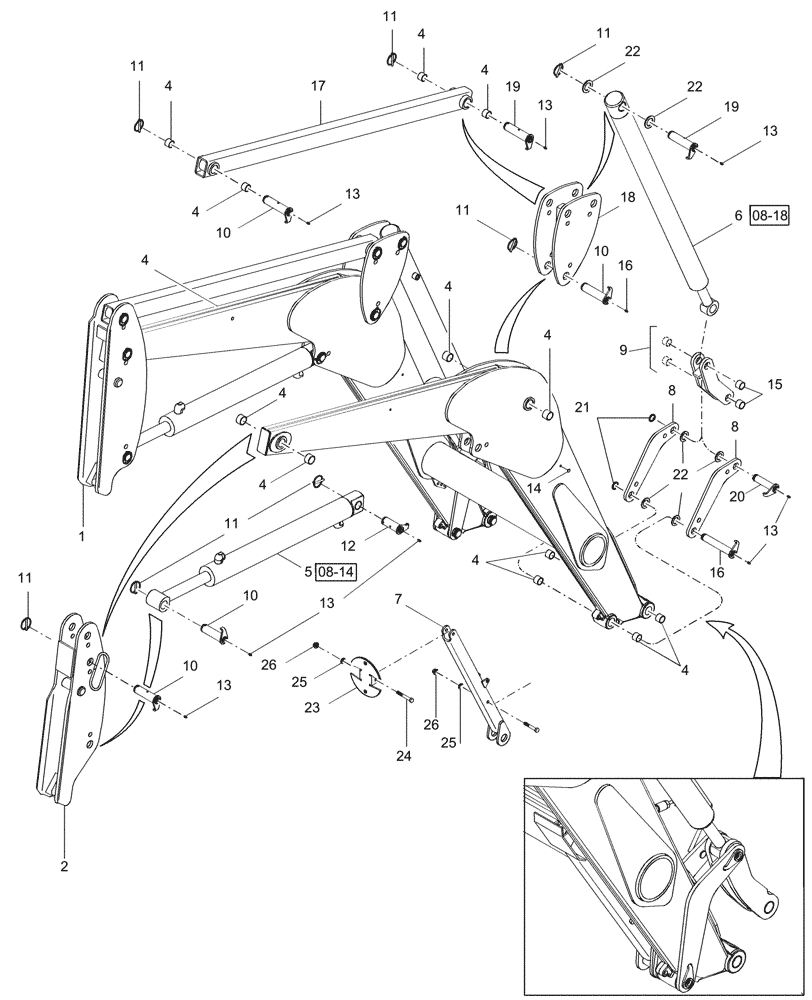

Запчасти Case IH LX156 (09-04) - FRAME - WITH MECHANICAL SELF-LEVEL - 2006 (09) - CHASSIS/ATTACHMENTS

1

87424641

TOWER

LH, W/ Decals

1шт.

2

87424642

TOWER

RH, W/ Decals

1шт.

3

87353514

Loader, W/ Decals, Incl 4, 14

1шт.

4

87305980

BUSHING,38.29mm ID x 42.42mm OD x 19.3mm L

24шт.

5

87341478

CYLINDER,Double Acting, 44.45mm Rod, 575.6mm Stroke

2шт.

6

87341487

CYLINDER,Double Acting, 38.1mm Rod, 528.3mm Stroke

Bucket

2шт.

7

87353951

TUBE

Park

2шт.

8

87350616

4шт.

9

87350628

Incl 15

2шт.

10

87447587

PIVOT PIN,38.1mm OD x 165mm L

8шт.

11

A61560

LOCK PIN

14шт.

12

87447581

PIVOT PIN,38.1mm OD x 117mm L

2шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

18шт.

14

CL5306

PLUG

5шт.

15

87305980

BUSHING,38.29mm ID x 42.42mm OD x 19.3mm L

2шт.

16

87447583

PIVOT PIN

W/ Flag, 1-1/2" OD x 7-3/4" L

2шт.

17

87348281

Incl 4

2шт.

18

87348544

2шт.

19

87454966

PIVOT PIN,38.1mm OD x 146mm L

W/ Flag

4шт.

20

87447589

PIVOT PIN,38.1mm OD x 141.5mm L

W/ Flag

2шт.

21

103-16150

SNAP RING,#150, Ext

4шт.

22

321285A1

WASHER

Plastic

16шт.

23

87353970

Parking

2шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

25

495-11053

WASHER,1/2", SAE

4шт.

26

231-5348

FLANGE NUT,Flg, 1/2"-13

4шт.
