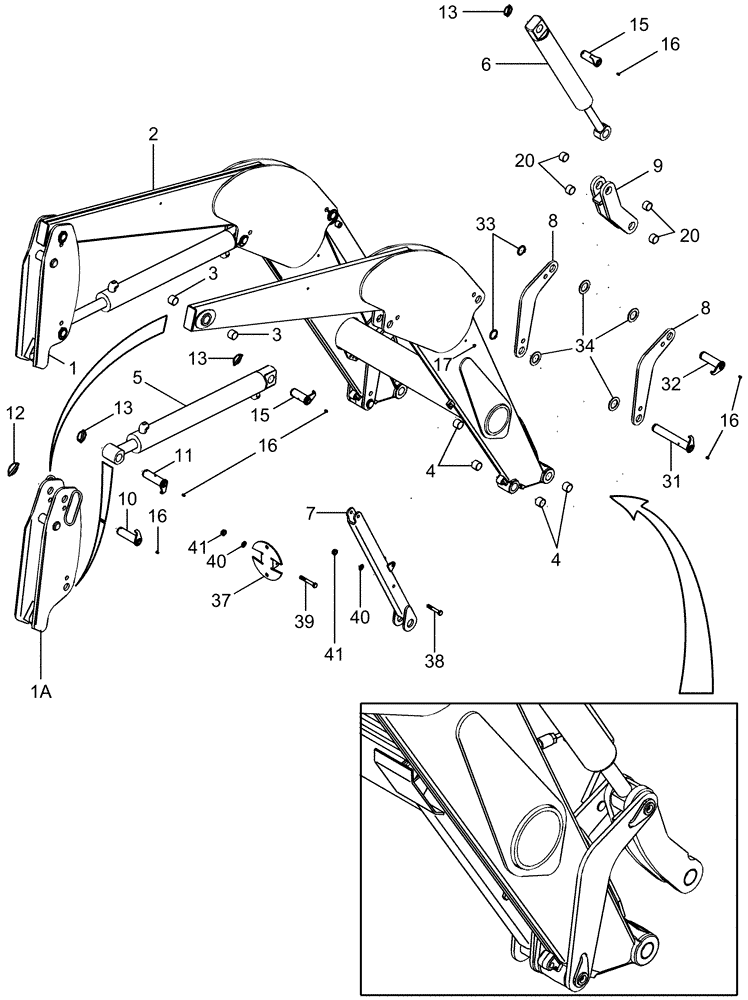

Запчасти Case IH LX156 (09-02) - FRAME - WITHOUT SELF-LEVEL - 2006 (09) - CHASSIS/ATTACHMENTS

1

87448961

TOWER

Left Hand, Inc. 43, 44

1шт.

1a

87448962

TOWER

Right Hand, Inc. 43, 44

1шт.

2

NSS

NOT SOLD SEPARAT

BOOM ASSEMBLY, Loader, Inc. 3, 4, 17, 45, 46, 47

1шт.

3

87305980

BUSHING,38.29mm ID x 42.42mm OD x 19.3mm L

1-1/2 ID x 3/4 in

4шт.

4

87305980

BUSHING,38.29mm ID x 42.42mm OD x 19.3mm L

1-1/2 ID x 3/4 in

8шт.

5

87341468

CYLINDER,Double Acting, 44.45mm Rod, 672.3mm Stroke

2шт.

See Figure 08 -12

1шт.

6

87341472

CYLINDER,Double Acting, 38.1mm Rod, 546.1mm Stroke

Bucket

2шт.

See Figure 08 -16

1шт.

7

87424669

STAND

Park

2шт.

8

87350616

4шт.

9

87350628

Inc. 20

2шт.

10

87447587

PIVOT PIN,38.1mm OD x 165mm L

1-1/2 OD

2шт.

11

87447587

PIVOT PIN,38.1mm OD x 165mm L

1-1/2 OD

2шт.

12

A61560

LOCK PIN

2шт.

13

A61560

LOCK PIN

6шт.

15

87447581

PIVOT PIN,38.1mm OD x 117mm L

1-1/2 OD

4шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

12шт.

17

CL5306

PLUG

8шт.

20

87305980

BUSHING,38.29mm ID x 42.42mm OD x 19.3mm L

1-1/2 ID x 1 in

4шт.

31

87447583

PIVOT PIN

With Flag, 1-1/2 x 7-3/4

2шт.

32

87447589

PIVOT PIN,38.1mm OD x 141.5mm L

With Flag, 1-1/2 x 4-3/4

2шт.

33

103-16150

SNAP RING,#150, Ext

4шт.

34

321285A1

WASHER

Plastic

8шт.

37

87353970

Parking

2шт.

39

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

40

495-11053

WASHER,1/2", SAE

4шт.

41

231-5348

FLANGE NUT,Flg, 1/2"-13

4шт.

43

86979962

WARNING DECAL

Safety, Not Shown

2шт.

See Figure 09 -17

1шт.

44

86979960

DANGER DECAL

Safety, Not Shown

2шт.

See Figure 09 -17

1шт.

45

86979961

DANGER DECAL

Safety, Not Shown

2шт.

See Figure 09 -17

1шт.

46

87425573

DECAL

Model, LX156, Left Hand, Not Shown

1шт.

See Figure 09 -17

1шт.

47

87425574

DECAL

Model, LX156, Right Hand, Not Shown

1шт.

See Figure 09 -17

1шт.
