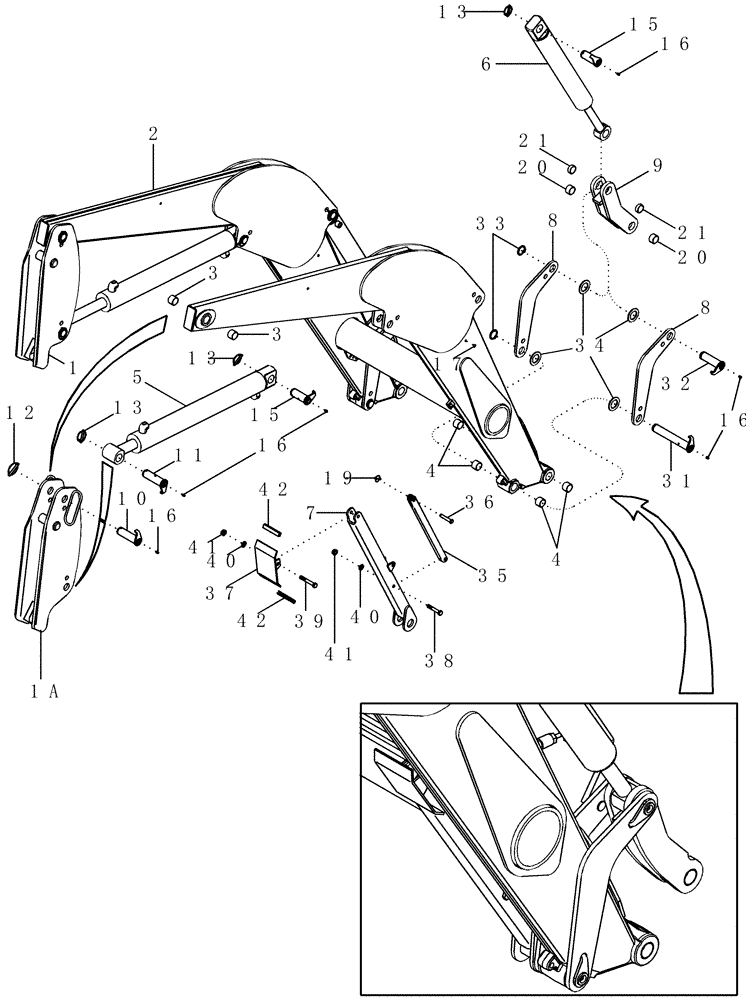

Запчасти Case IH LX156 (09-01) - FRAME - WITHOUT SELF-LEVEL - 2005 AND PRIOR (09) - CHASSIS/ATTACHMENTS

1

87424617

TOWER

Left Hand, Inc. 43, 44

1шт.

1a

87424618

TOWER

Right Hand, Inc. 43, 44

1шт.

2

87424603

BOOM

Loader, Inc. 3, 4, 17, 45, 46, 47

1шт.

3

318872A1

BUSHING

1-1/2 ID x 1 in

4шт.

4

318872A1

BUSHING

1-1/2 ID x 1 in

8шт.

5

87424629

LIFT CYLINDER,Double Acting, 44.45mm Rod, 672.34mm Stroke

2шт.

See Figure 08 -11

1шт.

6

448118A1

CYLINDER ASSY.

Bucket

2шт.

See Figure 08 -15

1шт.

7

87424669

STAND

Park

2шт.

8

449763A1

PLATE

4шт.

9

449841A1

LIFT LINK

Inc. 20, 21

2шт.

10

313907A2

PIN ASSY.

1-1/2 OD

2шт.

11

313907A2

PIN ASSY.

1-1/2 OD

2шт.

12

A61560

LOCK PIN

2шт.

13

A61560

LOCK PIN

6шт.

15

318870A2

PIN ASSY.

1-1/2 OD

4шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

12шт.

17

CL5306

PLUG

8шт.

19

302676A1

LINCH PIN

2шт.

20

318872A1

BUSHING

1-1/2 ID x 1 in

2шт.

21

324206A1

BUSHING

1-1/2 ID x 3/4 in

2шт.

31

87424274

PIN

With Flag, 1-1/2 x 7-3/4

2шт.

32

315085A2

PIN ASSY.

With Flag, 1-1/2 x 4-3/4

2шт.

33

103-16150

SNAP RING,#150, Ext

4шт.

34

321285A1

WASHER

Plastic

8шт.

35

87424667

TUBE,505 mm L

2шт.

36

439-5844

HEADED PIN,1/2" x 2 3/4", G5

2шт.

37

328951A1

STAND

Parking

2шт.

38

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

39

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

40

495-11053

WASHER,1/2", SAE

4шт.

41

231-5348

FLANGE NUT,Flg, 1/2"-13

4шт.

42

338889A1

MOLDING

Seal, 100 mm

4шт.

43

86979962

WARNING DECAL

Safety, Not Shown

2шт.

See Figure 09 -17

1шт.

44

86979960

DANGER DECAL

Safety, Not Shown

2шт.

See Figure 09 -17

1шт.

45

86979961

DANGER DECAL

Safety, Not Shown

2шт.

See Figure 09 -17

1шт.

46

87425573

DECAL

Model, LX156, Left Hand, Not Shown

1шт.

See Figure 09 -17

1шт.

47

87425574

DECAL

Model, LX156, Right Hand, Not Shown

1шт.

See Figure 09 -17

1шт.
