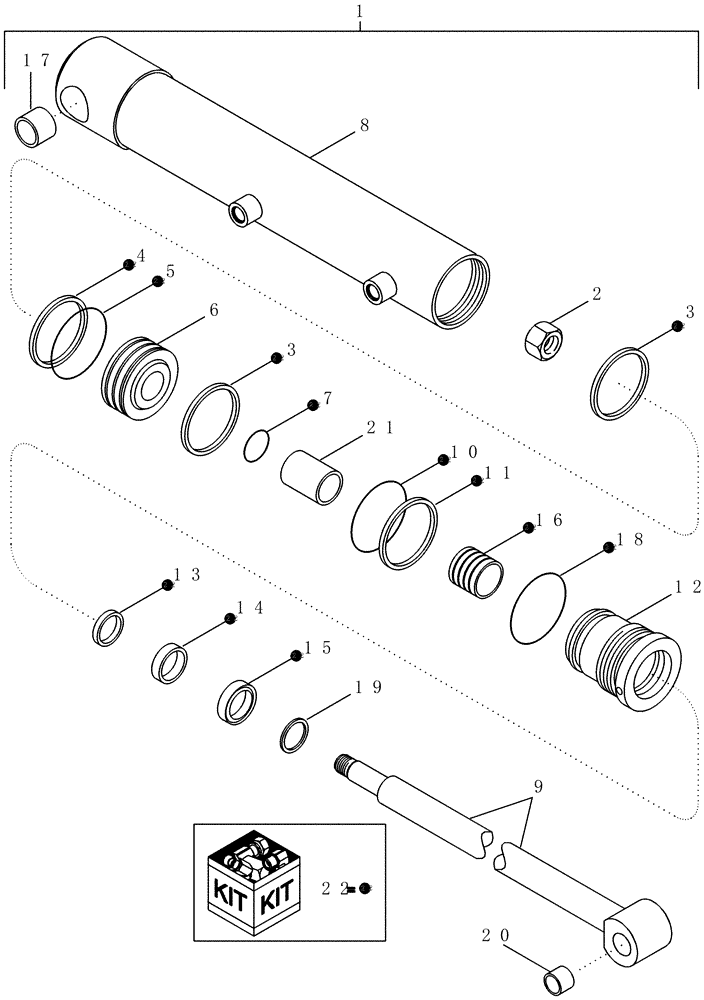

Запчасти Case IH LX156 (08-17) - CYLINDER ASSEMBLY - BUCKET - WITH MECHANICAL SELF-LEVEL - 2005 AND PRIOR (08) - HYDRAULICS

1

451461A1

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 528.32mm Stroke

Bucket

1шт.

With Mechanical Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

348470A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

87405752

PISTON ROD

Inc. 20

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

348460A1

HEAD

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

318872A1

BUSHING

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

324206A1

BUSHING

2шт.

21

NSS

NOT SOLD SEPARAT

Spacer

1шт.

22

352544A1

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 -16, 18

1шт.
