(08-11) - CYLINDER ASSEMBLY - LIFT - WITHOUT SELF-LEVEL - 2005 AND PRIOR

Запчасти Case IH LX156 (08-11) - CYLINDER ASSEMBLY - LIFT - WITHOUT SELF-LEVEL - 2005 AND PRIOR (08) - HYDRAULICS

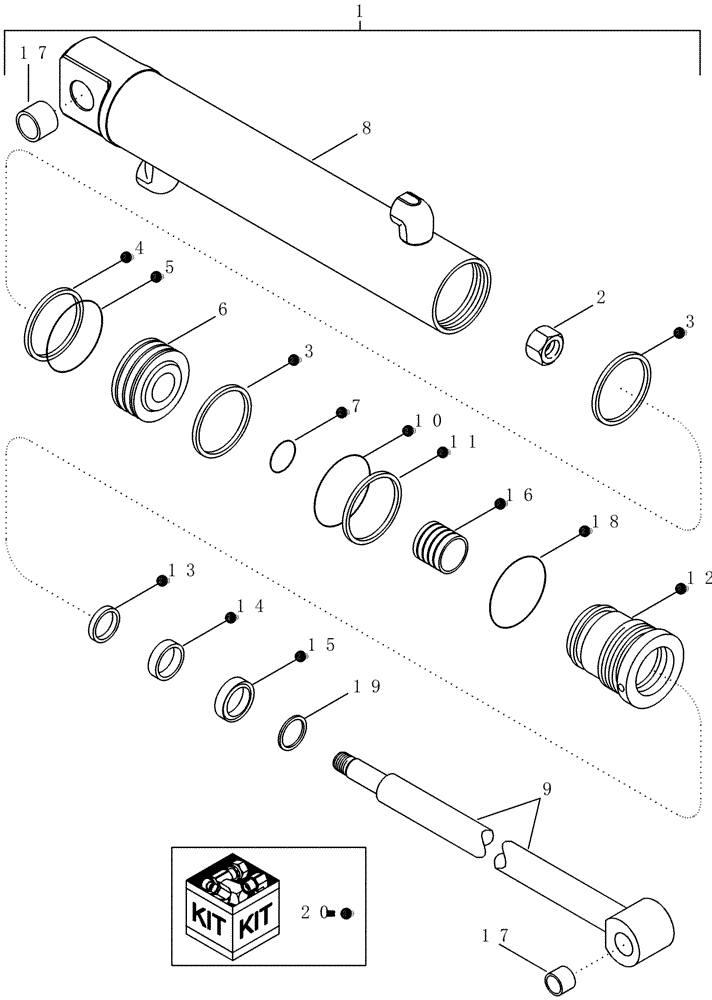

Схема запчастей Case IH LX156 - (08-11) - CYLINDER ASSEMBLY - LIFT - WITHOUT SELF-LEVEL - 2005 AND PRIOR (08) - HYDRAULICS
20
20
9
10
6
5
20
20
16
20
11
20
15
20
1
20
4
3
20
7
20
8
12
14
20
19
17
20
20
20
17
3
13
2
20
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87424629

LIFT CYLINDER,Double Acting, 44.45mm Rod, 672.34mm Stroke

1шт.

Without Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

348470A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

87427510

ROD ASSY.

Inc. 2 of Ref 17

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

360029A1

HEAD ASSY.

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

318872A1

BUSHING

4шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

353123A1

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
