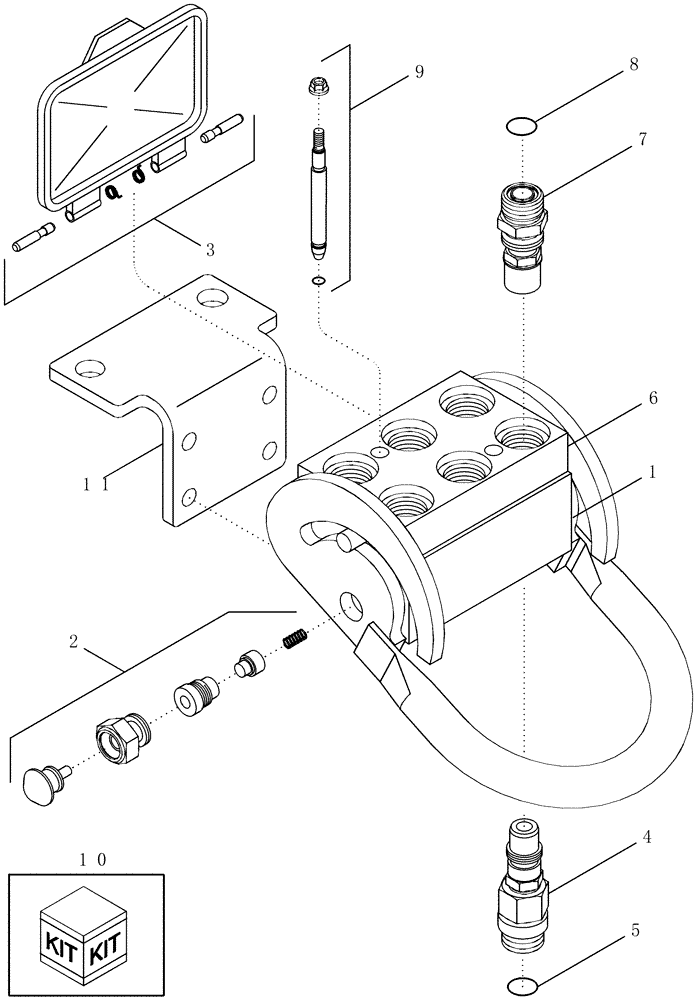

Запчасти Case IH LX156 (08-09) - COUPLER - ONE LEVER QUICK CONNECT (08) - HYDRAULICS

REF

INSTRUCTION

Coupler Assembly, One Lever Quick Connect, Inc. 1 - 11

1шт.

1

447245A1

COUPLING

Fixed Half, Inc. 2 - 5

1шт.

2

448432A1

STOP LOCK

1шт.

3

448411A1

COVER ASSY

1шт.

4

447080A1

COUPLING, QUICK, FEM

Female, Inc. 8

4шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

6

87431654

COUPLING

Mobile Half, Inc. 6 - 10

1шт.

7

87431657

QUICK MALE COUPLING

Male, Inc. 5

4шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

9

447247A1

LOCK PIN

Alignment

2шт.

10

447244A1

SEAL KIT

4-6шт.

11

87428701

BRACKET

(Not Shown)

1шт.

Used on MXU100 and MXU110 Tractors with 4 Cylinder Engine

1шт.

See Figures 08 -05, 08 -06

1шт.

11

448414A1

BRACKET

(Shown)

1шт.

Used on MXU125 Tractor with 6 Cylinder Engine

1шт.

See Figures 08 -07, 08 -08

1шт.
