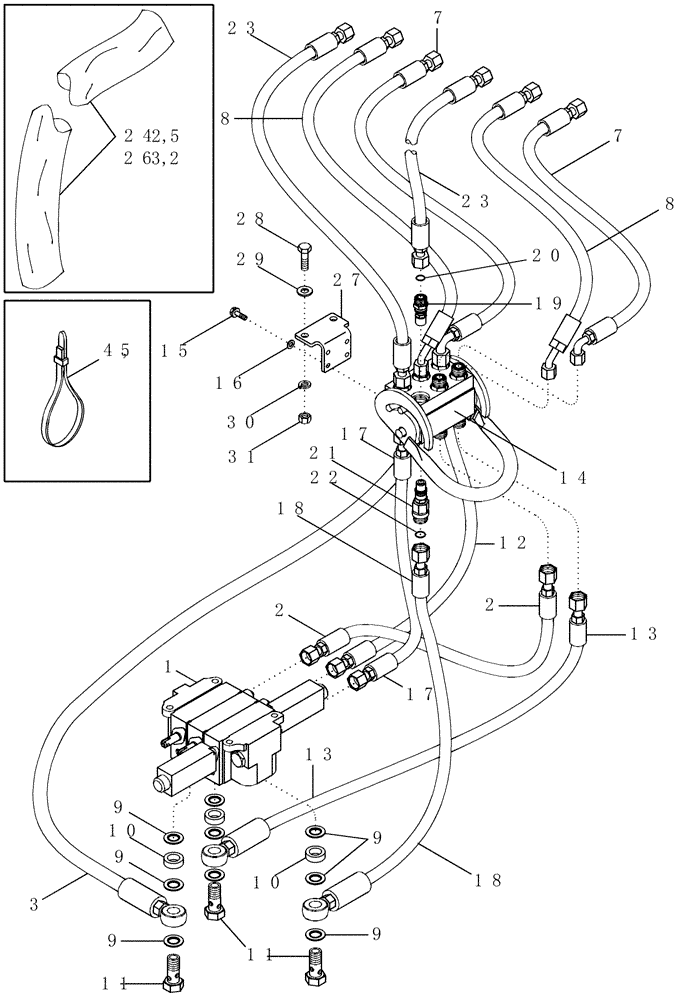

Запчасти Case IH LX156 (08-08) - HYDRAULICS - 3 FUNCTION WITH ONE LEVER QUICK CONNECT, MXU125 TRACTOR W/6 CYLINDER ENGINE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Valve, Loader, 3 Function
1шт.
2
448417A1
HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25
Valve To Boom Cylinder Rod End
1шт.
3
448419A1
HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17
Valve To Boom Cylinder Head End
1шт.
4
291207C1
CLAMP
Strap 14 inch
14шт.
5
1985078C2
SET OF PARTS
Color Tie Straps
1шт.
7
448434A1
HYDRAULIC HOSE,15.80 mm ID x 1981.00 mm, SAE 100R17 Class 25
2шт.
8
448435A1
HYDRAULIC HOSE,15.80 mm ID x 1981.00 mm, SAE 100R17 Class 25
2шт.
10
82020496
SPACER
3шт.
11
86583640
BOLT
M18 x 1.5
3шт.
12
448417A1
HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25
Valve To Bucket Cylinder Head End
1шт.
13
448419A1
HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17
Valve To Bucket Cylinder Rod End
1шт.
14
REF
INSTRUCTION
Coupler Assembly, One Lever Quick Connect
1шт.
15
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
4шт.
16
892-11008
LOCK WASHER,8mm ID
4шт.
17
448417A1
HYDRAULIC HOSE,12.70 mm ID x 889.00 mm, SAE 100R17 Class 25
3rd Function
1шт.
18
448419A1
HYDRAULIC HOSE,12.7mm ID x 1016mm L, SAE 100R17
3rd Function
1шт.
19
87431657
QUICK MALE COUPLING
Male, Inc.20
2шт.
20
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
21
447080A1
COUPLING, QUICK, FEM
Female, Inc. 22
2шт.
22
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
23
448440A1
HYDRAULIC HOSE,12.70 mm ID x 1981.00 mm, SAE 100R17 Class 25
3rd Function
2шт.
24
87428115
SLEEVE
Hose, 24 in, Lower
1шт.
25
87409364
HOSE PROTECTION
Sleeve, Hose, 4 Hose, 60 in, Upper
1шт.
26
87428113
SLEEVE
Hose, 4 Hose, 24 in, Lower
1шт.
27
87456254
BRACKET
1шт.
28
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
2шт.
29
495-11053
WASHER,1/2", SAE
2шт.
30
492-11050
LOCK WASHER,1/2"
2шт.
31
425-108
NUT,1/2" - 13, Gr 5
2шт.
32
87409366
HOSE PROTECTION
2 Hose, 54 in, Upper
1шт.
Выбрано товаров: 31
