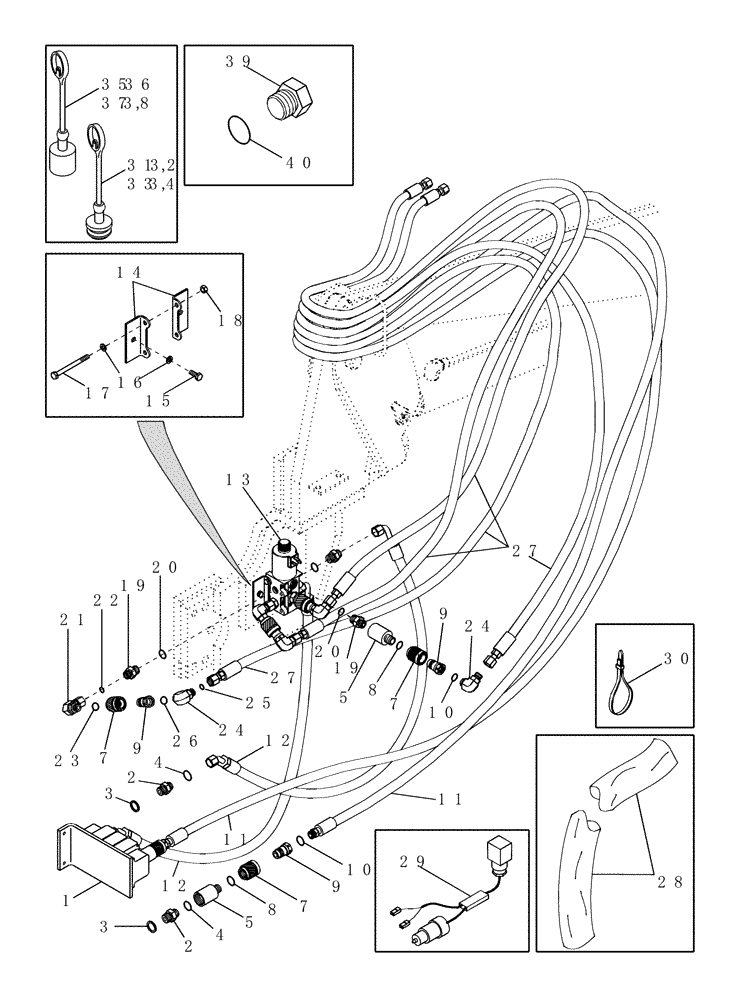

Запчасти Case IH LX152 (08-06) - HYDRAULICS - MID MOUNT (2 FUNCTION STANDARD QUICK CONNECT AND 3RD FUNCTION DIVERTER KIT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Valve

1шт.

See JXU Tractor Catalog

1шт.

2

87403694

FITTING

Din Male, Inc. 3, 4

4шт.

3

87406796

SEAL

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87403695

FITTING

Inc. 6

4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

87404023

COUPLING, QUICK, FEM

6шт.

9

87404022

QUICK MALE COUPLING

Male

6шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

87403676

HOSE,12.70 mm ID x 2127.20 mm, SAE 100R17 Class 25

Inc. 10, Loader Valve to Boom

2шт.

12

87403684

HOSE,12.70 mm ID x 533.40 mm, SAE 100R17 Class 25

Loader Valve to Diverter Valve

2шт.

13

86983720

HYDRAULIC VALVE

Diverter

1шт.

See Figure 08-14

1шт.

14

87403872

BRACKET

Diverter Mount

2шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

16

892-11008

LOCK WASHER,8mm ID

4шт.

17

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 20, 21

6шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

Inc. 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 25, 26

4шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

87403690

HOSE,12.70 mm ID x 1936.70 mm, SAE 100R17 Class 25

Diverter Valve to Boom

4шт.

28

87405296

SLEEVE

6 Hose, 66 inch

1шт.

29

86983719

HARNESS

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

31

327227A1

CAP

Male, Blue

1шт.

32

327228A1

CAP

Male, Orange

1шт.

33

327229A1

CAP

Male, Yellow

1шт.

34

327230A1

CAP

Male. Black

1шт.

35

327231A1

CAP

Male, Red

1шт.

36

327232A1

CAP

Male, Green

1шт.

37

333717A1

CAP

Female, Blue

1шт.

38

333718A1

CAP

Female, Orange

1шт.

39

333719A1

CAP

Female, Yellow

1шт.

40

333720A1

CAP

Female, Black

1шт.

41

333721A1

CAP

Female, Red

1шт.

42

333722A1

CAP

Female, Green

1шт.

87407019

KIT

KIT, O-ring Plug, To Enhance Bucket Cycle Times, Inc. 43, 44

1шт.

43

220067A1

PLUG,M22 x 1.5 ORB

1шт.

44

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
