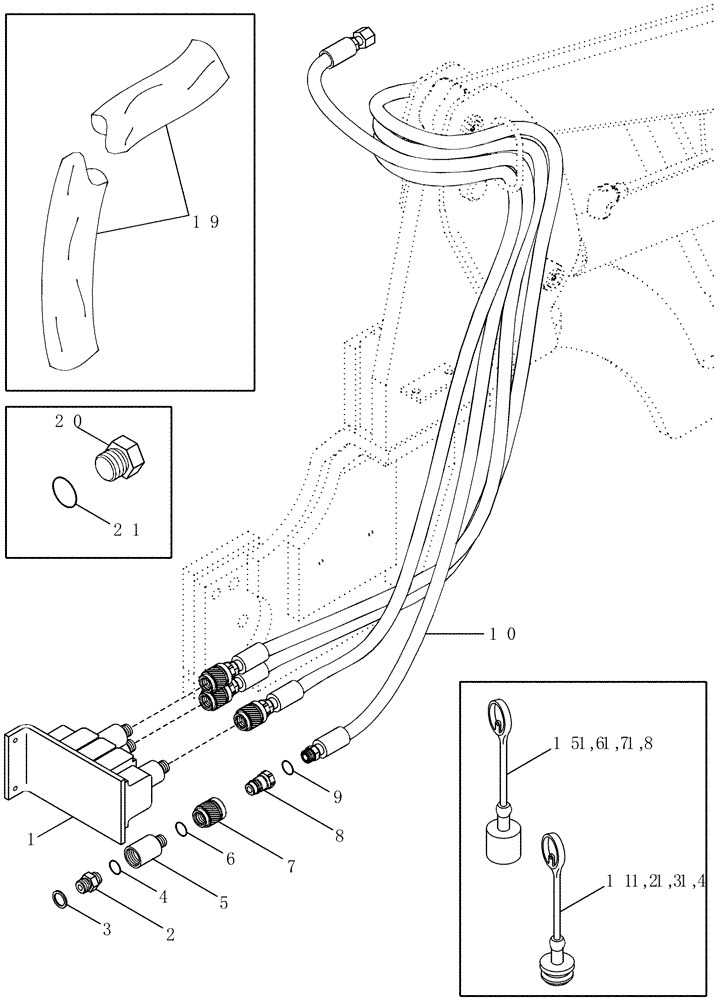

Запчасти Case IH LX152 (08-04) - HYDRAULICS - MID MOUNT (2 FUNCTION STANDARD QUICK CONNECT) (08) - HYDRAULICS

REF

INSTRUCTION

Loader Valve

1шт.

See JXU Tractor Catalog

1шт.

2

87403694

FITTING

M18 Din Male to 13/16 Male, Inc. 3, 4

4шт.

3

87406796

SEAL

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87403695

FITTING

13/16 Female to 3/4 Male, Inc. 6

4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

87404023

COUPLING, QUICK, FEM

4шт.

8

87404022

QUICK MALE COUPLING

Male

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

87403676

HOSE,12.70 mm ID x 2127.20 mm, SAE 100R17 Class 25

Inc. 9, Loader Valve to Boom

4шт.

11

327232A1

CAP

Male, Green

1шт.

12

327227A1

CAP

Male, Blue

1шт.

13

327229A1

CAP

Male, Yellow

1шт.

14

327231A1

CAP

Male, Red

1шт.

15

333722A1

CAP

Female, Green

1шт.

16

333717A1

CAP

Female, Blue

1шт.

17

333719A1

CAP

Female, Yellow

1шт.

18

333721A1

CAP

Female, Red

1шт.

19

87405292

SLEEVE

4 Hose, 66 inch

1шт.

87407019

KIT

KIT, O-ring Plug, To Enhance Bucket Cycle Times, Inc. 20, 21

1шт.

20

220067A1

PLUG,M22 x 1.5 ORB

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
