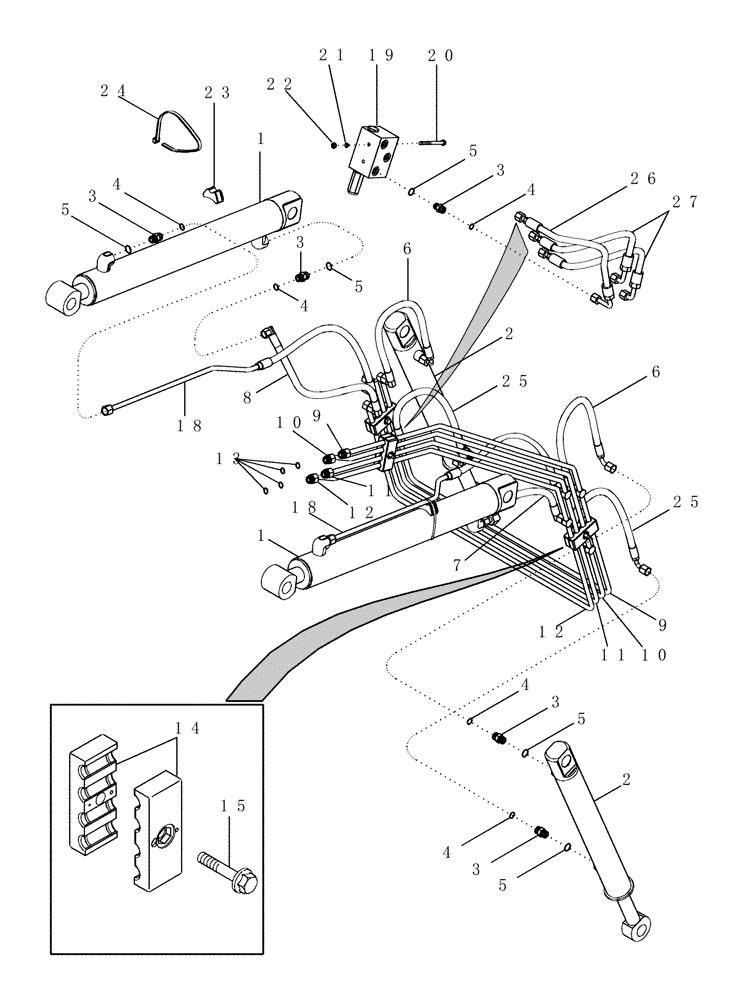

Запчасти Case IH LX152 (08-02) - HYDRAULICS - LOADER FRAME - WITH MECHANICAL SELF-LEVEL (08) - HYDRAULICS

1

448109A1

CYLINDER ASSY.

Lift

2шт.

See Figure 08-10

1шт.

2

451464A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 474.98mm Stroke

Bucket

2шт.

See Figure 08-12

1шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 4, 5

9шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

346111A1

HOSE

559 mm (22 in)

2шт.

7

87404199

HOSE,9.50mm ID x 400mm L, SAE 100R2, Cl 20, Type 1

Right Hand

1шт.

8

87404198

HOSE,9.50mm ID x 450mm L, SAE 100R2, Cl 20, Type 1

Left Hand

1шт.

9

86992237

HYD TUBE,0.50" OD

Bucket Cylinder, Head End, Inc. 13

1шт.

10

86992239

HYD TUBE,0.50" OD

Bucket Cylinder, Rod End, Inc. 13

1шт.

11

438381A1

HYD TUBE

Lift Cylinder, Head End, Inc. 13

1шт.

12

86992240

HYD TUBE,0.50" OD

Lift Cylinder, Rod End, Inc. 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

324067A1

BRACKET

6шт.

15

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3/8 x 2

3шт.

18

324952A2

HYD TUBE

Lift Cylinder

2шт.

19

86988707

VALVE PRESSURE RELIE

1шт.

See Figure 08-15

1шт.

20

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

21

492-11025

LOCK WASHER,1/4"

2шт.

22

425-104

NUT,1/4"-20, Cl 5

2шт.

23

D38648

BLOCK

Saddle

2шт.

24

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

25

87405450

HOSE ASSY.

711 mm (28 in)

2шт.

26

87405390

HOSE ASSY.

508 mm (20 in)

1шт.

27

87405388

HOSE ASSY.

432 mm (17 in)

2шт.
