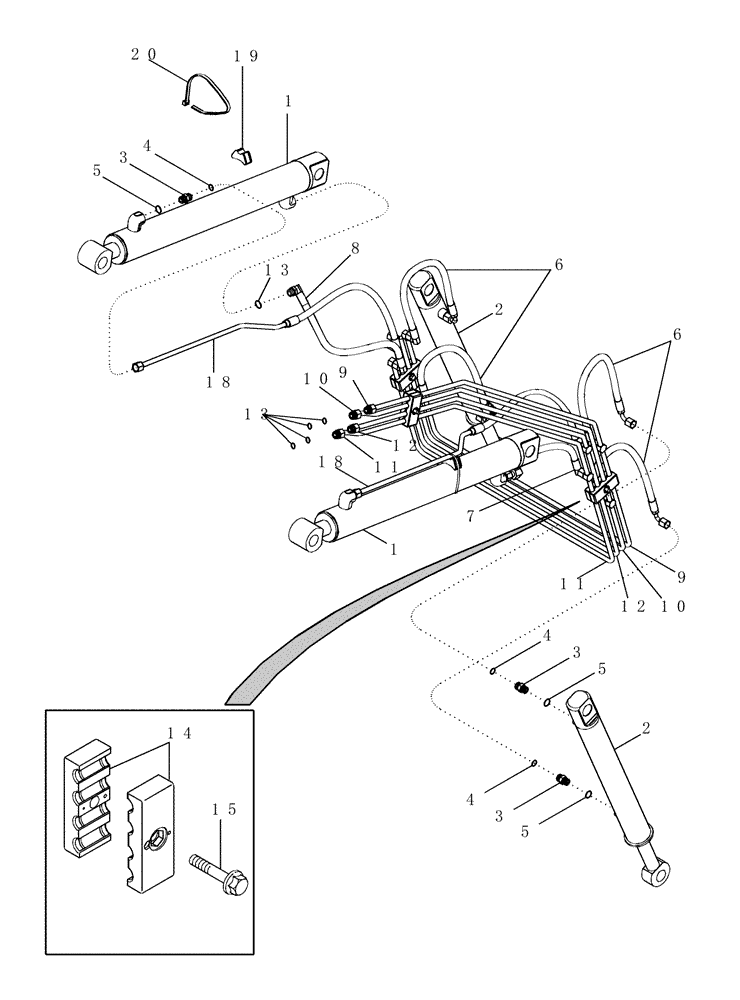

Запчасти Case IH LX152 (08-01) - HYDRAULICS - LOADER FRAME - WITHOUT SELF-LEVEL (08) - HYDRAULICS

1

448109A1

CYLINDER ASSY.

Lift

2шт.

See Figure 08-10

1шт.

2

448111A1

CYLINDER ASSY.

Bucket

2шт.

See Figure 08-11

1шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 4, 5

6шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

346111A1

HOSE

559 mm (22 in)

4шт.

7

87404199

HOSE,9.50mm ID x 400mm L, SAE 100R2, Cl 20, Type 1

Right Hand

1шт.

8

87404198

HOSE,9.50mm ID x 450mm L, SAE 100R2, Cl 20, Type 1

Left Hand

1шт.

9

438376A1

HYD TUBE

Bucket Cylinder, Head End, Inc. 13

1шт.

10

438378A1

HYD TUBE

Bucket Cylinder, Rod End, Inc. 13

1шт.

11

438381A1

HYD TUBE

Lift Cylinder, Head End, Inc. 13

1шт.

12

438380A1

HYD TUBE

Lift Cylinder, Rod End, Inc. 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

324067A1

BRACKET

6шт.

15

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3/8 x 2

3шт.

18

324952A2

HYD TUBE

Lift Cylinder

2шт.

19

D38648

BLOCK

2шт.

20

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.
