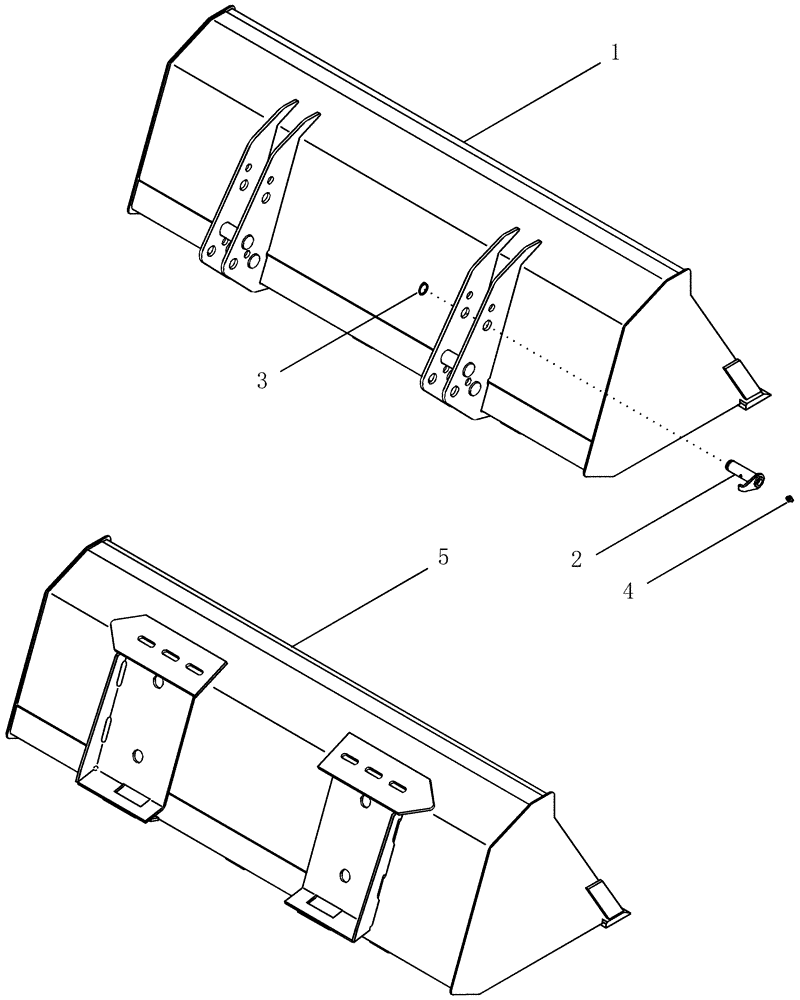

Запчасти Case IH LX152 (09-08) - MATERIAL BUCKETS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BUCKET, 72 in, Low Profile, Standard Attach

1шт.

Order 715717086 From Machinery Price List

1шт.

1

REF

INSTRUCTION

BUCKET, 72 in, Low Profile Heavy Duty, Standard Attach

1шт.

Order 715720086 From Machinery Price List

1шт.

1

REF

INSTRUCTION

BUCKET, 84 in, General Purpose, Standard Attach

1шт.

Order 717185006 From Machinery Price List

1шт.

1

REF

INSTRUCTION

BUCKET, 84 in, Heavy Duty, Standard Attach

1шт.

Order 715746016 From Machinery Price List

1шт.

2

86985403

PIVOT PIN

4шт.

3

103-16125

SNAP RING,#125, Ext

4шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

4шт.

5

REF

INSTRUCTION

BUCKET, 72 in, Quick Attach

1шт.

Order 715727036 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 72 in, Low Profile Heavy Duty, Quick Attach

1шт.

Order 715730076 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 84 in, General Purpose, Quick Attach

1шт.

Order 715745036 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 84 in, Heavy Duty, Quick Attach

1шт.

Order 715725066 From Machinery Price List

1шт.

5

REF

INSTRUCTION

BUCKET, 84 in, High Volume, Quick Attach

1шт.

Order 715726026 From Machinery Price List

1шт.
