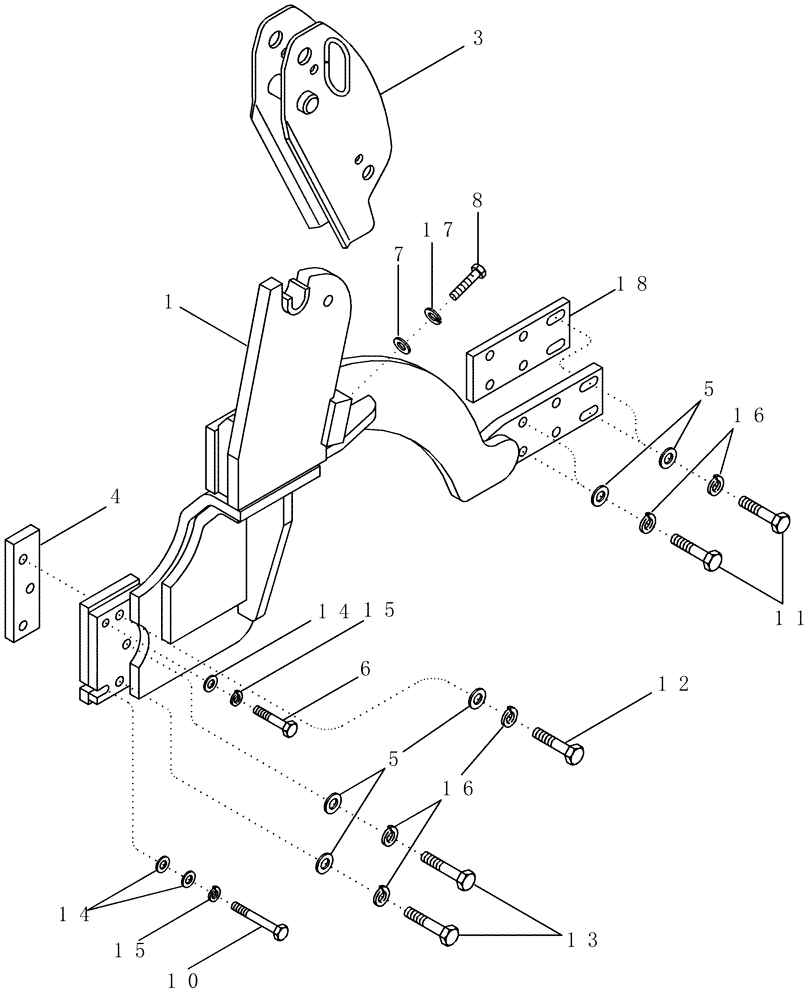

Запчасти Case IH LX152 (09-03) - MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

432230A1

BRACKET, SUPPORTING

Right Hand

1шт.

1

432232A1

BRACKET

Left Hand, Not Shown

1шт.

2

440042A1

FRONT PLATE

Spacer

2шт.

3

REF

INSTRUCTION

TOWER

2шт.

See Figures 09-01, 09-02

1шт.

4

447070A1

PLATE

Rear Spacer

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, Hardened

14шт.

6

87010560

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

M16 x 100

2шт.

7

496-31106

WASHER,1 1/16" x 2" x .219", HDN

1-1/16 x 2 x 7/32

2шт.

8

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

1 x 3-1/2

2шт.

10

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

Hex, M16 x 1.5 x 130, 10.9

2шт.

11

814-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

M20 x 80; 8.8

8шт.

12

814-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

M20 x 100 ; 8.8

2шт.

13

814-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 8.8

M20 x 110 ; 8.8

4шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

16

892-11020

LOCK WASHER,M20

14шт.

17

492-11100

LOCK WASHER,1"

1"

2шт.

18

440042A1

FRONT PLATE

Spacer

2шт.
