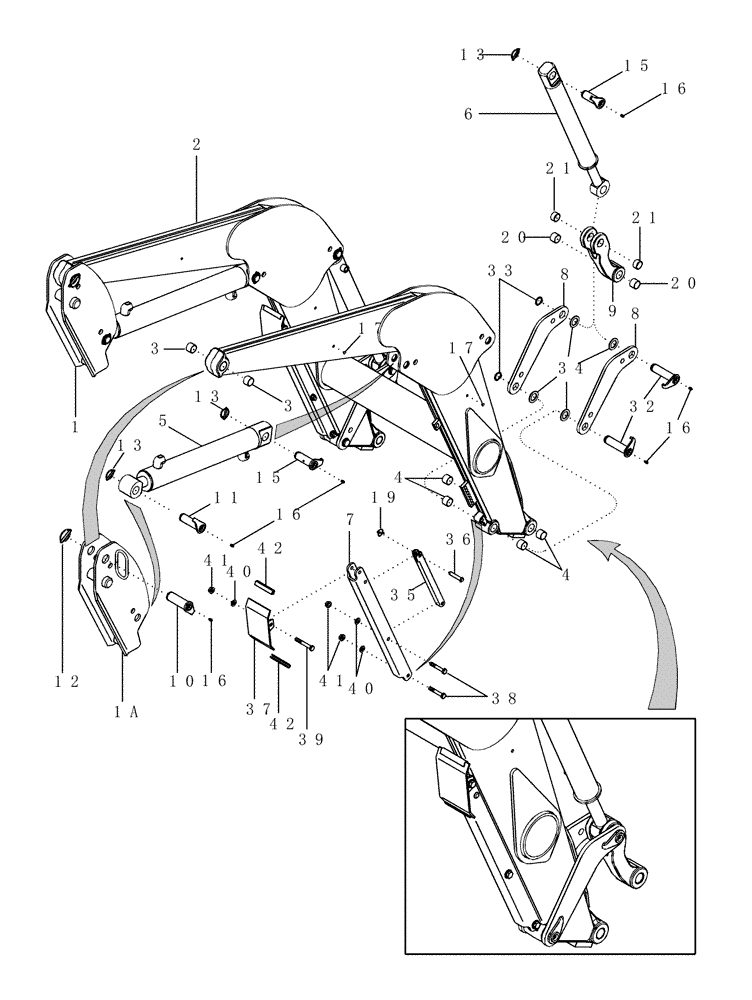

Запчасти Case IH LX152 (09-01) - FRAME - WITHOUT SELF-LEVEL (09) - CHASSIS/ATTACHMENTS

1

87406857

TOWER

Left Hand, Inc. 44

1шт.

1a

87406850

TOWER

Right Hand, Inc. 43

1шт.

2

87406878

FRAME ASSY

Loader, Inc. 3, 4, 45

1шт.

3

318872A1

BUSHING

1-1/2 ID x 1 in

4шт.

4

310955A1

BUSHING

1-1/4 ID x 1 in

8шт.

5

448109A1

CYLINDER ASSY.

Lift

2шт.

See Figure 08-10

1шт.

6

448111A1

CYLINDER ASSY.

Bucket

2шт.

See Figure 08-11

1шт.

7

320886A2

CHANNEL

Park

2шт.

8

86983534

PLATE

PLATE

4шт.

9

310954A1

LINK ASSY.

Inc. 20,21

2шт.

10

338818A1

PIN

1-1/2 OD

2шт.

11

319461A2

PIN

1-1/4 OD

2шт.

12

A61560

LOCK PIN

2шт.

13

A30338

PIN

6шт.

15

303073A2

PIN

1-1/4 OD

4шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

12шт.

17

CL5306

PLUG

5шт.

19

302676A1

LINCH PIN

2шт.

20

310955A1

BUSHING

1-1/4 ID x 1 in

2шт.

21

324304A1

BUSHING

1-1/4 ID x 3/4 in

2шт.

32

319460A2

PIN

With Flag, 1-1/4 x 4-1/2

4шт.

33

103-16125

SNAP RING,#125, Ext

4шт.

34

310565A1

WASHER,32mm ID x 51mm OD x 3.5mm Thk

Plastic

8шт.

35

320794A1

TUBE,365 mm Length

2шт.

36

439-5844

HEADED PIN,1/2" x 2 3/4", G5

2шт.

37

328951A1

STAND

Parking

2шт.

38

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

39

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

40

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

41

231-5348

FLANGE NUT,Flg, 1/2"-13

6шт.

42

338889A1

MOLDING

Seal, 100 mm

4шт.

43

86979962

WARNING DECAL

Safety, Not Illustrated

1шт.

See Figure 09-13

1шт.

44

86979960

DANGER DECAL

Safety, Not Illustrated

1шт.

See Figure 09-13

1шт.

45

86979961

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-13

1шт.
