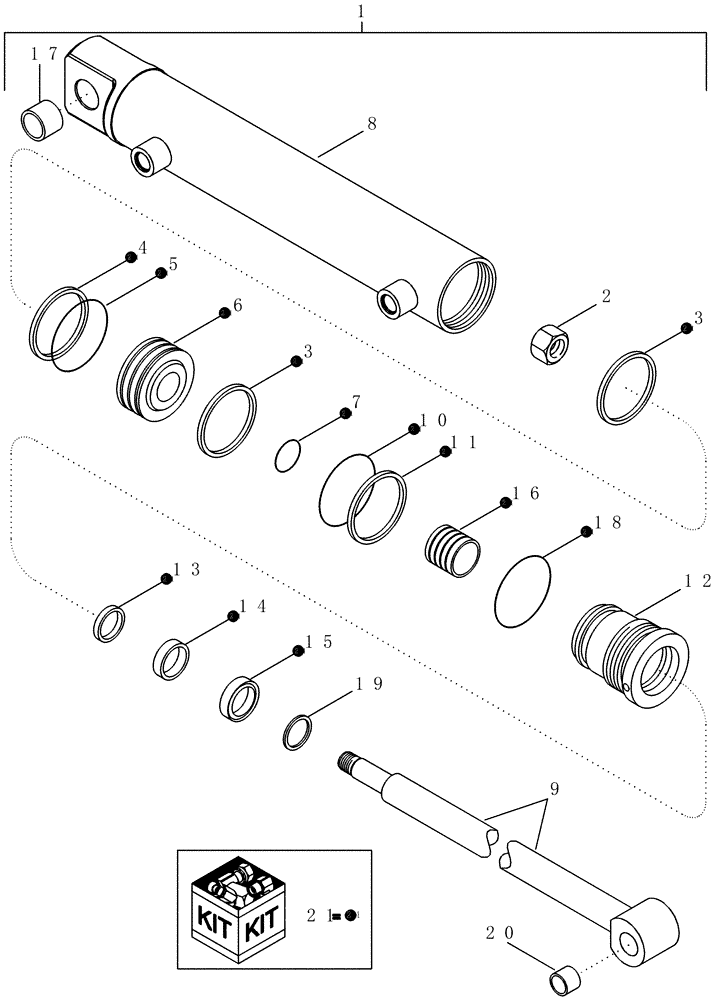

Запчасти Case IH LX152 (08-11) - CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - 448111A1 (08) - HYDRAULICS

1

448111A1

CYLINDER ASSY.

Bucket, Inc. 1 - 20

1шт.

Without Self-Level

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Rod

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

NSS

NOT SOLD SEPARAT

Head

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

17

NSS

NOT SOLD SEPARAT

Bushing

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Shield, Paint

1шт.

20

NSS

NOT SOLD SEPARAT

Bushing

2шт.

21

352544A1

SEAL KIT

Seal, Inc. 3 - 5, 7, 10, 11, 13 - 16, 18

1шт.
