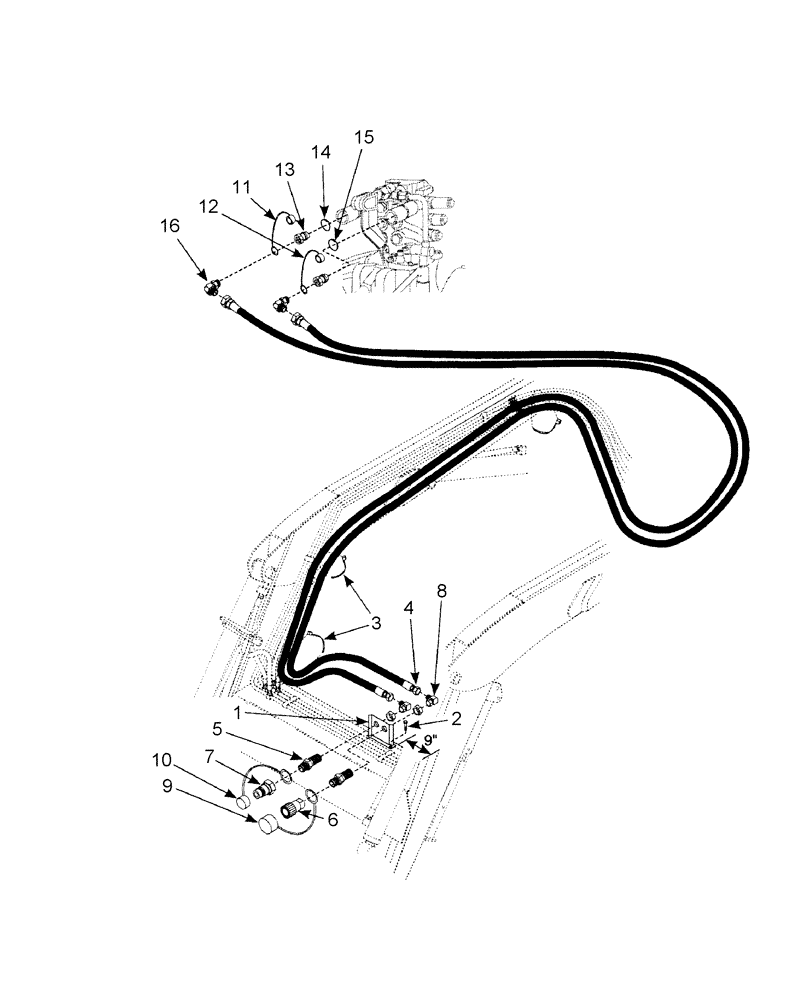

Запчасти Case IH LX146 (008) - HOSE KIT, THIRD FUNCTION (35) - HYDRAULIC SYSTEMS

1

86582398

BULKHEAD

1шт.

2

88946

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

2шт.

3

86582400

STRAP

Adjustable Tie, 3/16" x 11"

6шт.

4

SML474223

HOSE,264.00"

2шт.

5

86582377

ADAPTER

Bulkhead Union, O-Ring, 3/4"-16

2шт.

6

86582402

COUPLING

Female

1шт.

7

86582403

COUPLING

Male

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

9

86582405

DUST CAP

1-1/2"

1шт.

10

86582406

DUST CAP

1"

1шт.

11

333721A1

CAP

Red, Female

1шт.

12

333717A1

CAP

Blue, Female

1шт.

13

86581680

QUICK MALE COUPLING

Male

2шт.

14

86581691

BAND

Red, 1"

1шт.

15

86581690

BAND

Blue, 1"

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.
