(004) - LIFT CYLINDER, 50490 (NF)

Запчасти Case IH LX146 (004) - LIFT CYLINDER, 50490 (NF) (35) - HYDRAULIC SYSTEMS

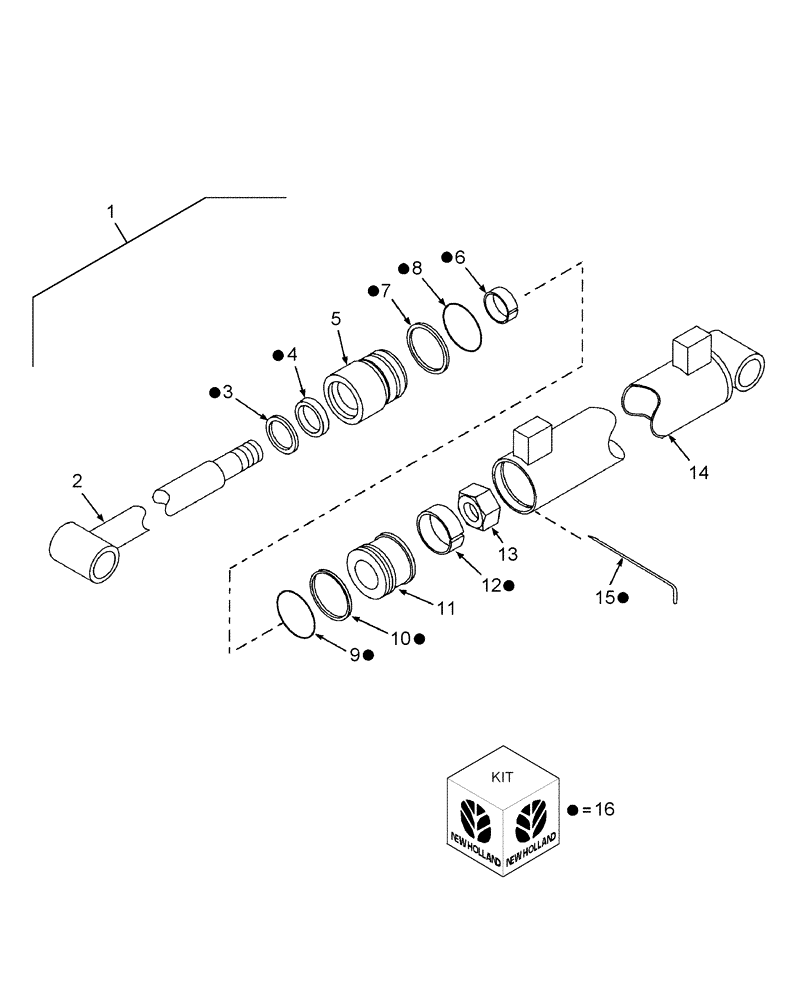

Схема запчастей Case IH LX146 - (004) - LIFT CYLINDER, 50490 (NF) (35) - HYDRAULIC SYSTEMS
12
13
3
9
8
1
10
7
11
15
6
14
5
2
4
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CSE50490

LIFT CYLINDER

(NF)

1шт.

2

SML50492

ROD

1шт.

3

NS

NOT SERVICED

Seal, Wiper

1шт.

4

NS

NOT SERVICED

Seal, Rod

1шт.

5

SML46676

CYLINDER HEAD

1шт.

6

NS

NOT SERVICED

Ring, Wear

1шт.

7

NS

NOT SERVICED

Washer, Backup

1шт.

8

NS

NOT SERVICED

O-Ring

1шт.

9

NS

NOT SERVICED

Seal, Piston

1шт.

10

NS

NOT SERVICED

O-Ring

1шт.

11

SML40733

PISTON

1шт.

12

NS

NOT SERVICED

Ring, Wear

1шт.

13

18489R1

LOCK NUT,1 1/4"-12, GB

1шт.

14

SML50488

TUBE

1шт.

15

NS

NOT SERVICED

Wire, Retaining

1шт.

16

SML46679

SEAL KIT

Incl. Ref. 3, 4, 6 thru 10, 12 & 15

1шт.
