(003) - TILT CYLINDER, 50500 (NG)

Запчасти Case IH LX146 (003) - TILT CYLINDER, 50500 (NG) (35) - HYDRAULIC SYSTEMS

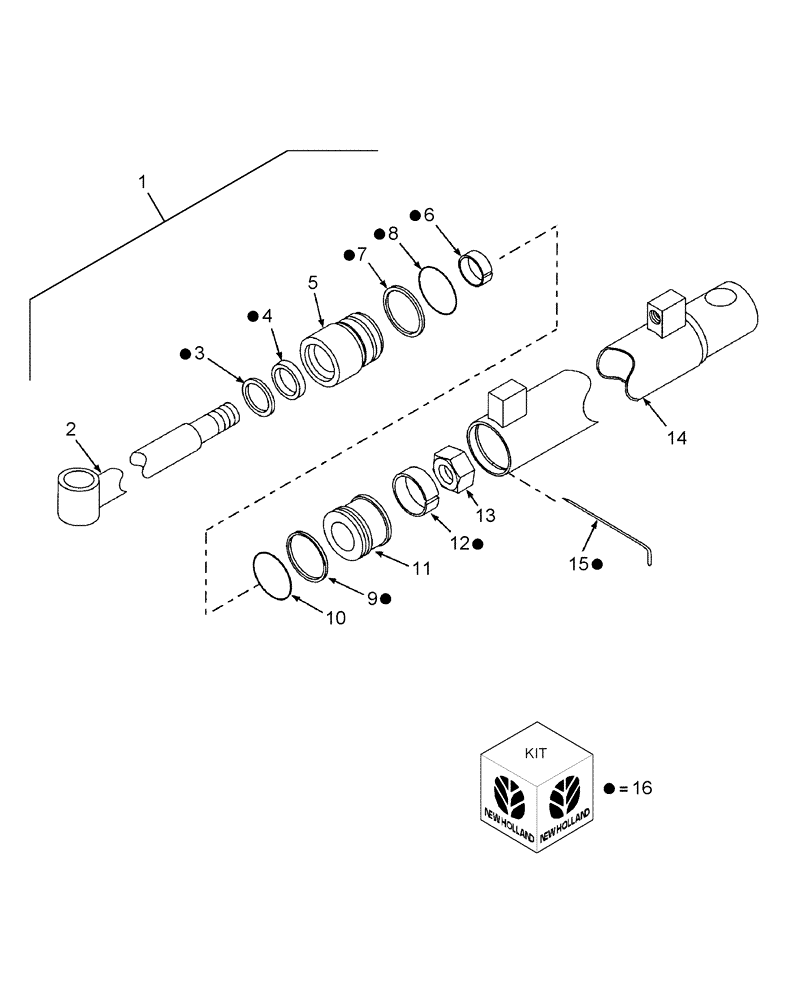

Схема запчастей Case IH LX146 - (003) - TILT CYLINDER, 50500 (NG) (35) - HYDRAULIC SYSTEMS
4
14
1
12
13
16
6
8
10
5
15
11
9
7
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CSE50500

CYLINDER

Tilt (NG)

1шт.

2

SML50495

ROD

1шт.

3

NS

NOT SERVICED

Seal, Wiper

1шт.

4

NS

NOT SERVICED

Seal, Rod

1шт.

5

86581661

CYLINDER HEAD

1шт.

6

NS

NOT SERVICED

Ring, Wear

1шт.

7

NS

NOT SERVICED

Washer, Backup

1шт.

8

NS

NOT SERVICED

O-Ring

1шт.

9

NS

NOT SERVICED

Seal, Piston

1шт.

10

NS

NOT SERVICED

O-Ring

1шт.

11

86581662

PISTON

1шт.

12

NS

NOT SERVICED

Ring, Wear

1шт.

13

231-46116

LOCK NUT,1"-14, GB

1шт.

14

SML50497

TUBE

1шт.

15

NS

NOT SERVICED

Wire, Retaining

1шт.

16

86581665

SEAL KIT

Incl. Ref. 3, 4, 6 thru 10, 12 & 15

1шт.
