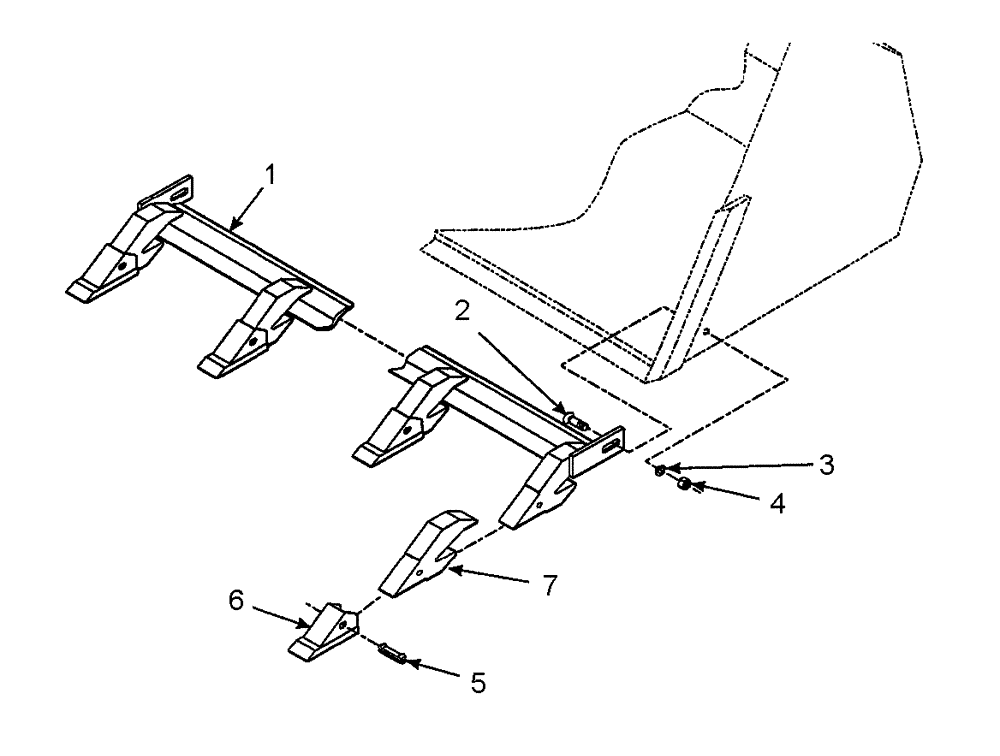

Запчасти Case IH LX146 (018) - TOOTH BAR (82) - FRONT LOADER & BUCKET

1

NS

NOT SERVICED

Bar, Tooth, Assembly, 84" or 96", HD Buckets

1шт.

2

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

2шт.

3

492-11062

BEARING WASHER,5/8"

2шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

D9NNA335AA

PIN

Retaining, 84"

8шт.

5

D9NNA335AA

PIN

Retaining, 96"

9шт.

5

D9NNA335AADS

PIN

Retaining, Direct Ship Item

1шт.

6

251472

BUCKET TOOTH

8шт.

6

251472

BUCKET TOOTH

96"

9шт.

6

251472DS

BUCKET TOOTH

Direct Ship Item

1шт.

7

SML41561

SHANK

Shank

1шт.
