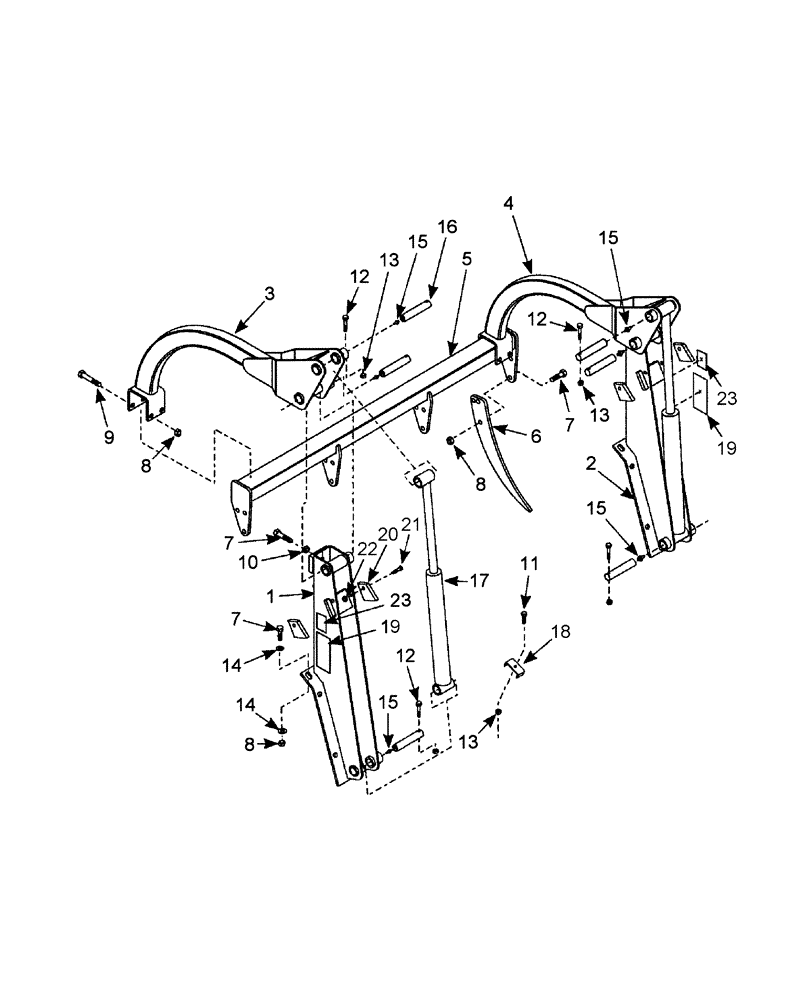

Запчасти Case IH LX146 (013) - GRAPPLE FORK, BUCKET MOUNTED (82) - FRONT LOADER & BUCKET

1

SML488611

SUPPORT

LH, W/Decal

1шт.

2

SML488612

SUPPORT

RH, W/Decal

1шт.

3

SML475121

FRAME

LH

1шт.

4

SML475122

FRAME

RH

1шт.

5

SML47510

SUPPORT

1шт.

6

86583615

TINE

4шт.

7

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

22шт.

8

9626598

NUT,3/4"-10, GB

24шт.

9

86507002

BOLT,Hex, 3/4"- 10 x 5 1/2", Gr 5

4шт.

10

84972

JAM NUT,Jam, 3/4"-10, G2

2шт.

11

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

13

9637692

NUT,3/8"-16, Gr B

6шт.

14

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

16шт.

15

PL

PROCURE LOCALLY

Fitting, Grease

6шт.

16

86583636

PIN

1-1/4" x 6.44"

6шт.

17

86583616

CYLINDER

see Fig. 015 for breakdown

2шт.

18

86583623

CLAMP

2шт.

19

86583638

DECAL

WARNING

2шт.

20

SML49090

STOP

Rotation

4шт.

21

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

22

9637692

NUT,3/8"-16, Gr B

4шт.

23

SML49152

DECAL

CAUTION

2шт.
