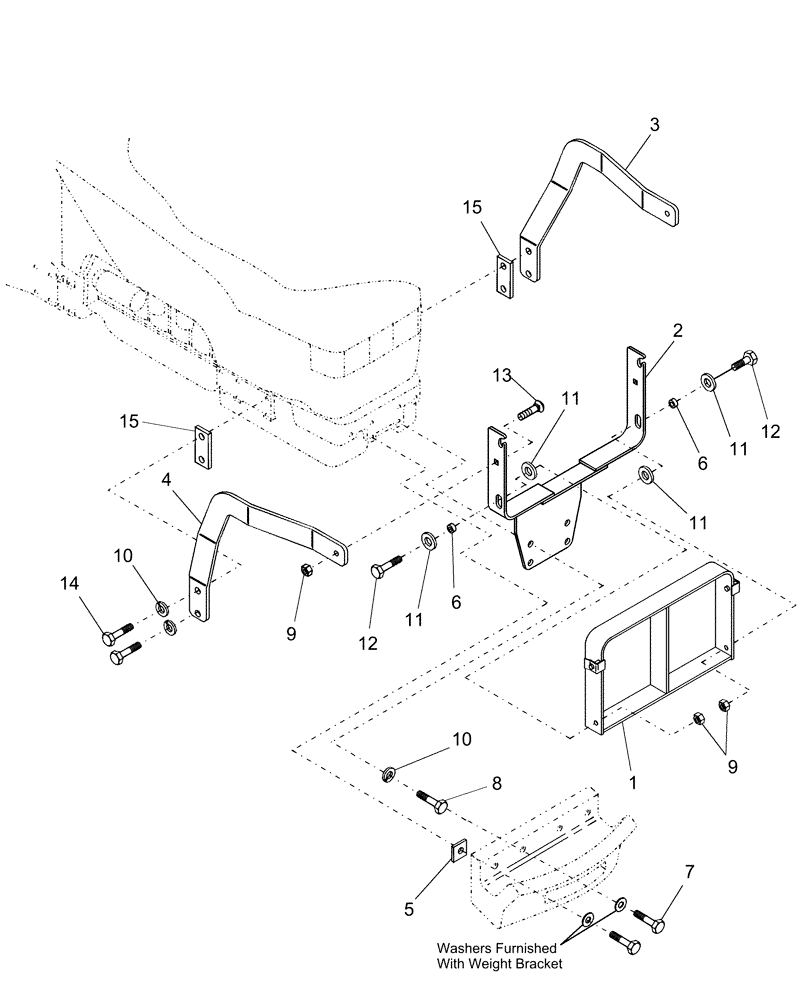

Запчасти Case IH LX146 (006) - GRILLE GUARD (82) - FRONT LOADER & BUCKET

1

86582540

GUARD

1шт.

2

SML52910

MOUNTING PARTS

1шт.

3

SML529111

STRUT

Left

1шт.

4

SML529112

STRUT

Right

1шт.

5

86582544

SPACER

2шт.

Used with weight bracket

1шт.

6

86582545

SPACER

2шт.

7

814-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

6шт.

Used with weight bracket

1шт.

8

614-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

8шт.

9

231-41410

NUT,5/8"-11, GB

4шт.

10

892-11020

LOCK WASHER,M20

8шт.

11

495-21069

WASHER,5/8"

4шт.

12

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

2шт.

14

614-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd

4шт.

15

SML53326

SPACER

Rectangular

2шт.
