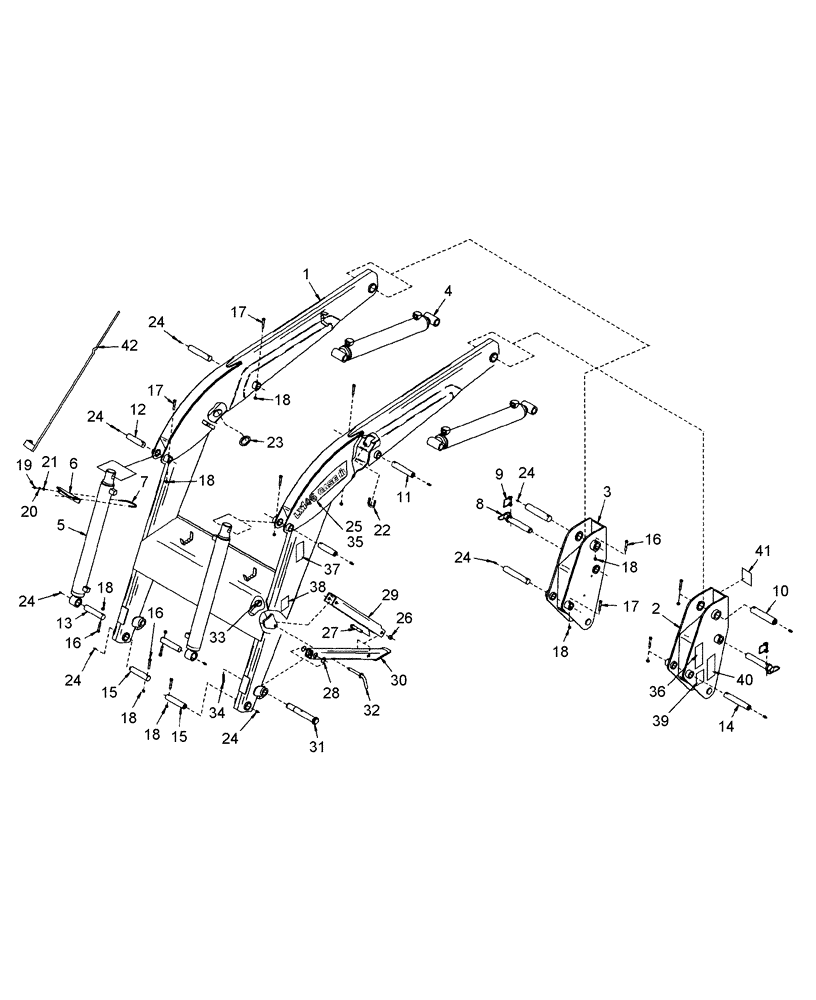

Запчасти Case IH LX146 (001) - MAINFRAME (82) - FRONT LOADER & BUCKET

1

CSE50554

BOOM

W/Decals

1шт.

2

CSE50555

FRAME

Left, W/Warning Decals

1шт.

3

CSE50450

FRAME

Right

1шт.

4

CSE50490

LIFT CYLINDER

Lift (NF), see Fig. 004

2шт.

5

CSE50500

CYLINDER

Tilt (NG), see Fig. 003

2шт.

6

86581697

BRACKET

Indicator

1шт.

7

86581698

U-BOLT

5/16"

1шт.

8

86581659

PIN,31.75mm OD x 250.82mm L

Hitch

2шт.

9

86581658

PIN

Hitch

2шт.

10

86582518

PIN

1-1/2" x 7.31"

2шт.

11

86581631

PIN

1-1/4" x 6.62"

2шт.

12

86581633

PIN

1-1/4" x 5-1/4"

2шт.

13

86581650

PIN

1-1/4" x 5.88"

2шт.

14

SML50481

SPECIAL PIN,31.75mm OD x 190.5mm L

1-1/4" x 7-1/2"

2шт.

15

SML50480

SPECIAL PIN

1-1/2" x 5.88"

2шт.

16

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

17

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

12шт.

19

425-105

NUT,5/16"-18, G5

2шт.

20

492-11031

LOCK WASHER,5/16"

2шт.

21

495-11034

WASHER,5/16", SAE

2шт.

22

SML450373

PROTECTION STRIP

4"

2шт.

23

SML450378

PROTECTION STRIP

7"

2шт.

24

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

12шт.

25

CSE52900

DECAL

LX146, RH, not shown

1шт.

26

231-41410

NUT,5/8"-11, GB

2шт.

27

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

28

SML60402

SPECIAL RING

4шт.

29

CSE50454

CHANNEL

Parking Stand

2шт.

30

CSE50456

TUBE ASSY.

Parking Stand

2шт.

31

SML50478

PIN ASSY.

2шт.

32

86582522

PIN

Parking Stand

2шт.

33

302676A1

LINCH PIN

2шт.

34

438-12432

LOCK PIN,3/8" x 2", Slotted

2шт.

35

CSE52901

DECAL

LX146, LH

1шт.

36

86581703

DECAL

WARNING

1шт.

37

NSS

NOT SOLD SEPARAT

WARNING

2шт.

38

86581705

DECAL

DANGER

2шт.

39

SML48921

DECAL

DANGER

1шт.

40

86581706

DECAL

WARNING

1шт.

41

86583639

DECAL

DANGER

1шт.

42

SML50484

ROD

Indicator

1шт.
