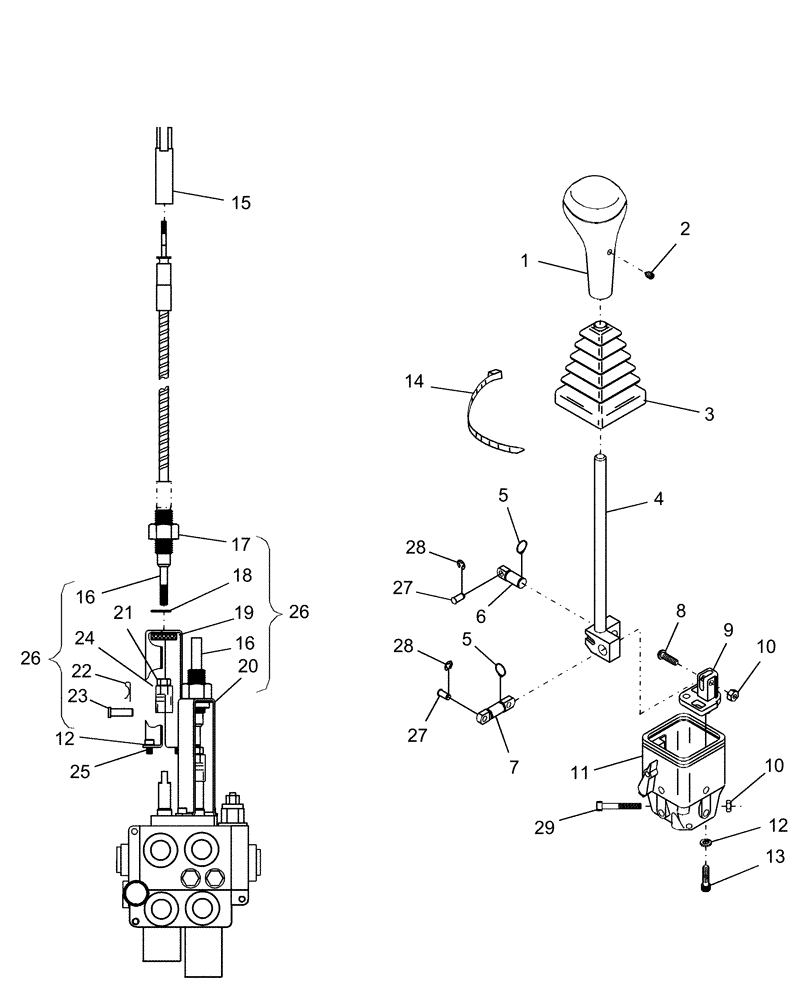

Запчасти Case IH LX146 (011) - JOYSTICK & CABLE HARNESS (55) - ELECTRICAL SYSTEMS

1

SML51814

HANDLE

1шт.

2

878-2068

SET SCREW,Hex Skt, M6 x 6mm, Cone Pt

1шт.

3

SML51805

BOOT

1шт.

4

SML51816

HANDLE

1шт.

5

SML604019

RING

Ext., 15/16"

4шт.

6

SML51808

ROD

Single, Tilt Cable

1шт.

7

SML51807

ROD

Double, Lift Cable

1шт.

8

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

1шт.

9

SML51806

CLEVIS

1шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

NSS

NOT SOLD SEPARAT

Base W/Lock Mechanism

1шт.

12

492-11025

LOCK WASHER,1/4"

5шт.

13

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

1шт.

14

PL

PROCURE LOCALLY

Tie, Cable, 3/16"

1шт.

15

SML52242

ADAPTER

2шт.

16

NSS

NOT SOLD SEPARAT

Cable

1шт.

17

87313

JAM NUT,Jam, 3/4"-16, G2

1шт.

18

493-21078

LOCK WASHER,Int Tooth, 3/4"

1шт.

19

SML517991

NUT

Knurled, 3/4"-16

1шт.

20

SML51800

STRAP

Valve Adapter

1шт.

21

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

22

432-616

COTTER PIN,3/32" x 1"

1шт.

23

439-1420

HEADED PIN,1/4" x 1 1/4"

1шт.

24

SML52907

HYD CONNECTOR

2шт.

25

461-42512

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/4"

4шт.

26

SML517583

CABLE ASSY.

80", Includes Ref. 16 thru 21

1шт.

27

SML51896

PIN

1/4"

2шт.

28

SML477782

RING

Ext., 1/4"

2шт.

29

864-6075

HEX SOC SCREW,M6 x 75mm, Cl 8.8

1шт.
