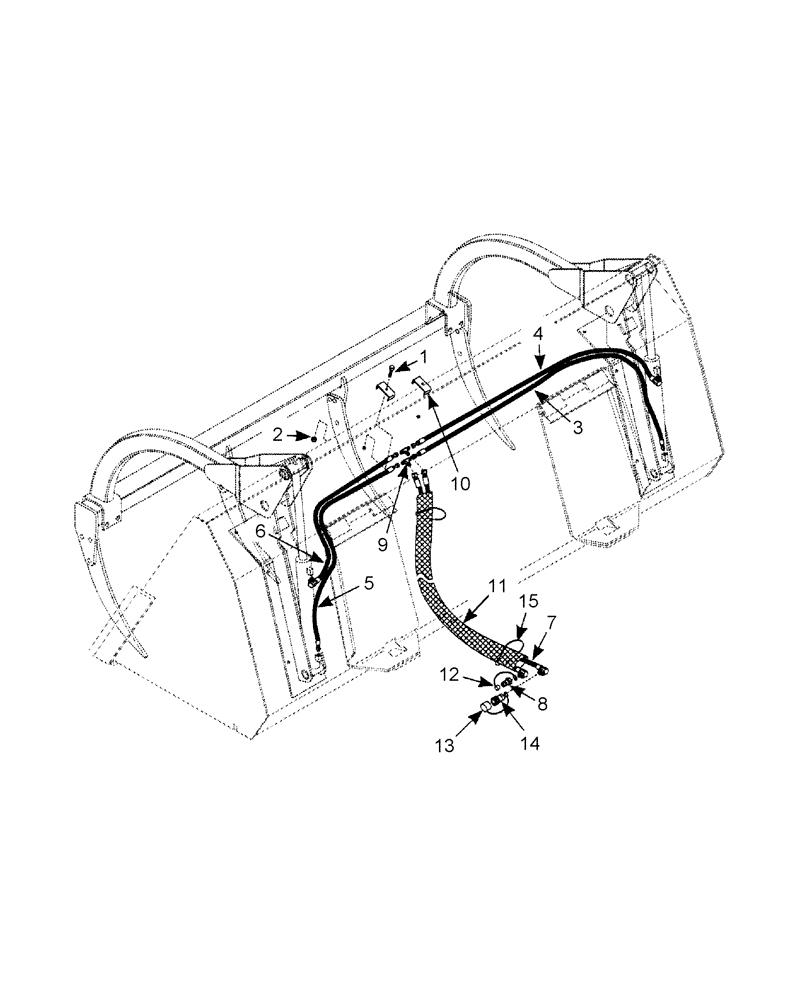

Запчасти Case IH LX146 (014) - GRAPPLE FORK HOSES (35) - HYDRAULIC SYSTEMS

1

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

2

9637692

NUT,3/8"-16, Gr B

2шт.

3

SML412332

HOSE,60.00"

1шт.

4

SML479681

HOSE,31.00"

1шт.

5

SML479682

HOSE,44.00"

1шт.

6

SML4123310

HOSE,42.00"

1шт.

7

SML479691

HOSE,58.00"

2шт.

8

86582403

COUPLING

Male

1шт.

9

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

10

86583623

CLAMP

2шт.

11

SML3485335

SLEEVE

1шт.

12

86582406

DUST CAP

1"

1шт.

13

86582405

DUST CAP

1-1/2"

1шт.

14

86582402

COUPLING

Female

1шт.

15

86582400

STRAP

Adjustable Tie, 3/16" x 11"

4шт.
