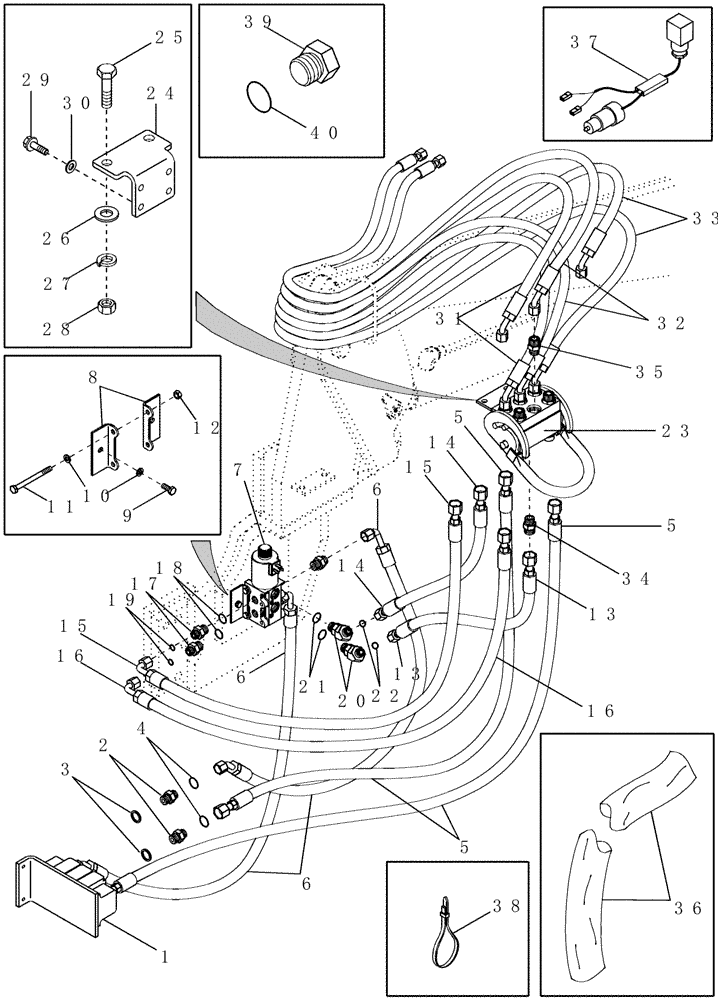

Запчасти Case IH LX132 (08-07) - HYDRAULICS -MID MOUNT,JXU TRACTOR (2 FUNCTION ONE LEVER QUICK CONNECT AND 3RD FUNCTION DIVERTER KIT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Valve

1шт.

See JXU Tractor Catalog

1шт.

2

87403694

FITTING

Din Male, Inc. 3, 4

4шт.

3

87406796

SEAL

SEAL

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87403677

HOSE,12.70 mm ID x 730.20 mm, SAE 100R17 Class 25

Loader Valve to Fastner QC

2шт.

6

87403684

HOSE,12.70 mm ID x 533.40 mm, SAE 100R17 Class 25

Loader Valve to Diverter Valve

2шт.

7

86983720

HYDRAULIC VALVE

Diverter

1шт.

See Figure 08-14

1шт.

8

87403872

BRACKET

Diverter Mount

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

892-11008

LOCK WASHER,8mm ID

4шт.

11

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

13

87403685

HOSE,12.70 mm ID x 342.90 mm, SAE 100R17 Class 25

Diverter Valve to Fastener QC

1шт.

14

87403686

HOSE,12.70 mm ID x 279.40 mm, SAE 100R17 Class 25

Diverter Valve to Fastener QC

1шт.

15

87403688

HOSE,12.70 mm ID x 406.40 mm, SAE 100R17 Class 25

Diverter Valve to Fastener QC

1шт.

16

87403687

HOSE,12.70 mm ID x 485.70 mm, SAE 100R17 Class 25

Diverter Valve to Fastener QC

1шт.

17

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 18, 19

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

201-377

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 21, 22

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

REF

INSTRUCTION

Coupler, Fastner One Lever Quick Connect

1шт.

See Figure 08-09

1шт.

24

448414A1

BRACKET

Coupler Mounting

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

28

425-108

NUT,1/2" - 13, Gr 5

2шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

30

892-11008

LOCK WASHER,8mm ID

4шт.

31

87403683

HOSE,12.70 mm ID x 1771.60 mm, SAE 100R17 Class 25

Fastner QC to Boom

2шт.

32

87403683

HOSE,12.70 mm ID x 1771.60 mm, SAE 100R17 Class 25

Fastner QC to Boom Aux

2шт.

33

87403683

HOSE,12.70 mm ID x 1771.60 mm, SAE 100R17 Class 25

Fastner QC to Boom

2шт.

34

87431657

QUICK MALE COUPLING

Male

2шт.

35

447080A1

COUPLING, QUICK, FEM

Female

2шт.

36

87405295

SLEEVE

6 Hose, 54 inch

1шт.

37

86983719

HARNESS

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

8шт.

87407019

KIT

KIT, O-ring Plug, To Enhance Bucket Cycle Times, Inc. 39, 40

1шт.

39

220067A1

PLUG,M22 x 1.5 ORB

1шт.

40

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
