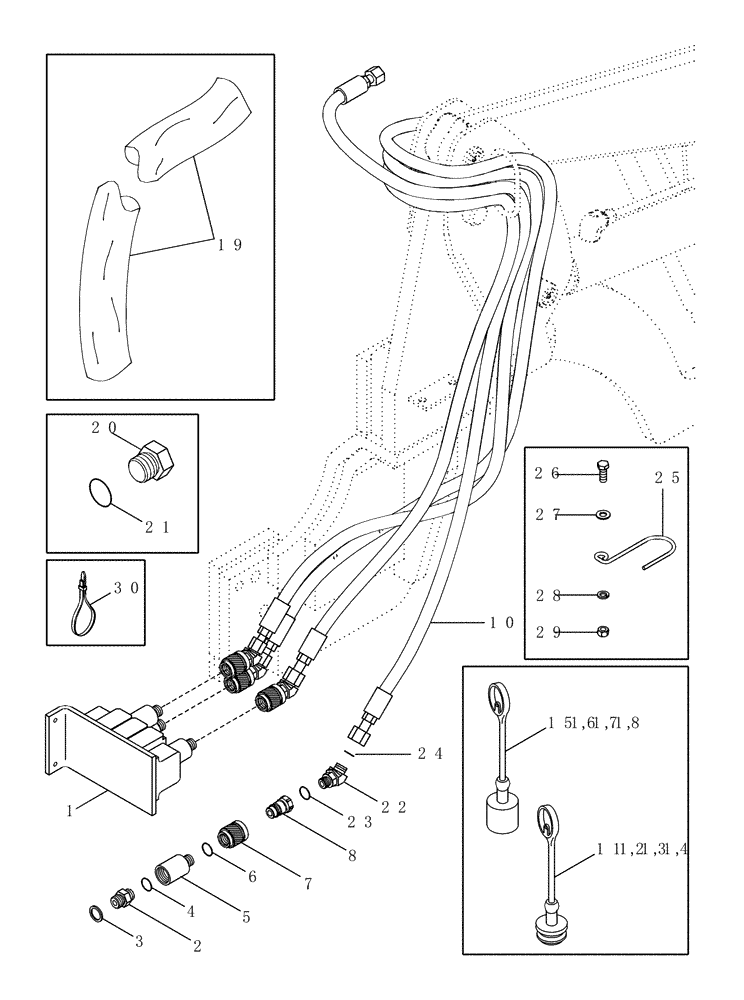

Запчасти Case IH LX132 (08-04) - HYDRAULICS - MID MOUNT, JXU TRACTOR (2 FUNCTION STANDARD QUICK CONNECT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Loader Valve

1шт.

See JXU Tractor Catalog

1шт.

2

87403694

FITTING

M18 Din Male to 13/16 Male, Inc. 3, 4

4шт.

3

87406796

SEAL

SEAL

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87403695

FITTING

13/16 Female to 3/4 Male, Inc. 6

4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

87404023

COUPLING, QUICK, FEM

4шт.

8

87404022

QUICK MALE COUPLING

Male

4шт.

10

87412138

HOSE,12.70 mm ID x 55.00 mm, SAE 100R17 CLASS 25 TYPE 1

Loader Valve to Boom

4шт.

11

327232A1

CAP

Male, Green

1шт.

12

327227A1

CAP

Male, Blue

1шт.

13

327229A1

CAP

Male, Yellow

1шт.

14

327231A1

CAP

Male, Red

1шт.

15

333722A1

CAP

Female, Green

1шт.

16

333717A1

CAP

Female, Blue

1шт.

17

333719A1

CAP

Female, Yellow

1шт.

18

333721A1

CAP

Female, Red

1шт.

19

87405292

SLEEVE

4 Hose, 66 inch

1шт.

87407019

KIT

O-ring Plug, To Enhance Bucket Cycle Times, Inc. 20, 21

1шт.

20

220067A1

PLUG,M22 x 1.5 ORB

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 23, 24

4шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

29

425-108

NUT,1/2" - 13, Gr 5

1шт.

30

1985078C2

SET OF PARTS

Color Tie Straps

1шт.
