(09-20) - EXHAUST KIT, JX95 TRACTOR, 60 MM, 50 MM, BEFORE S/N HFJ012500

Запчасти Case IH LX132 (09-20) - EXHAUST KIT, JX95 TRACTOR, 60 MM, 50 MM, BEFORE S/N HFJ012500 (09) - CHASSIS/ATTACHMENTS

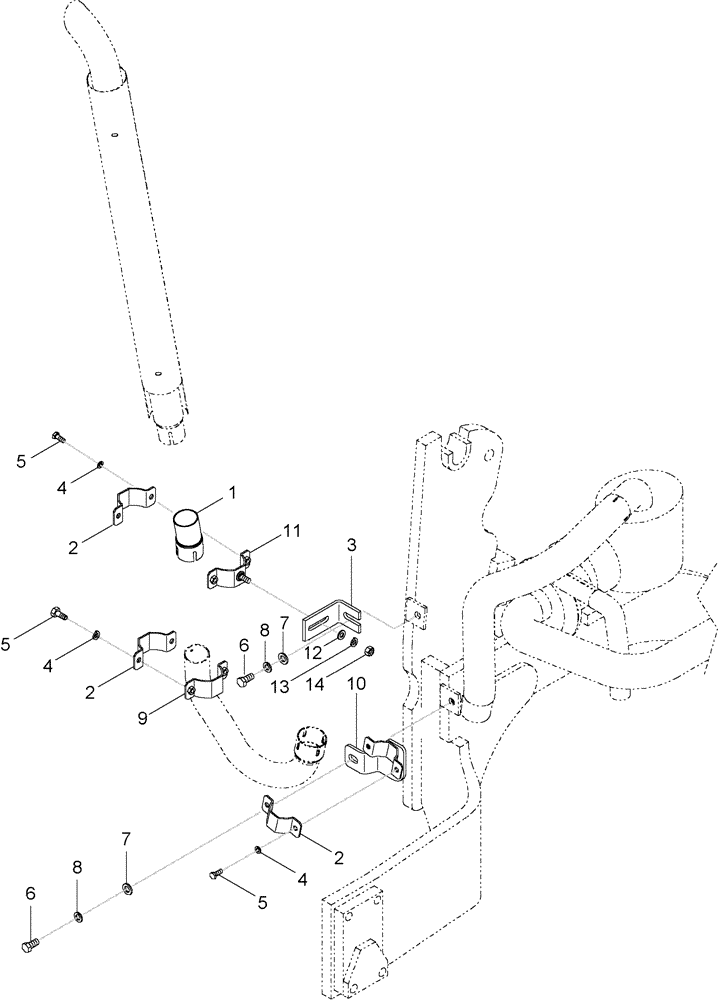

Схема запчастей Case IH LX132 - (09-20) - EXHAUST KIT, JX95 TRACTOR, 60 MM, 50 MM, BEFORE S/N HFJ012500 (09) - CHASSIS/ATTACHMENTS
5
11
1
2
12
2
13
4
8
8
14
2
4
6
7
9
7
5
4
6
5
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87431773

ADAPTER

Exhaust Tube

1шт.

2

87432442

CLAMP

Exhaust

3шт.

3

87450936

PLATE, SUPPORT

Exhaust

1шт.

4

892-11008

LOCK WASHER,8mm ID

6шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

8

892-11012

LOCK WASHER,M12

2шт.

9

87432956

CLAMP

Exhaust

1шт.

10

87433093

PLATE

Exhaust Support

1шт.

11

87432704

CLAMP

With Stud

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

M8 x 25; 12.9

6шт.
