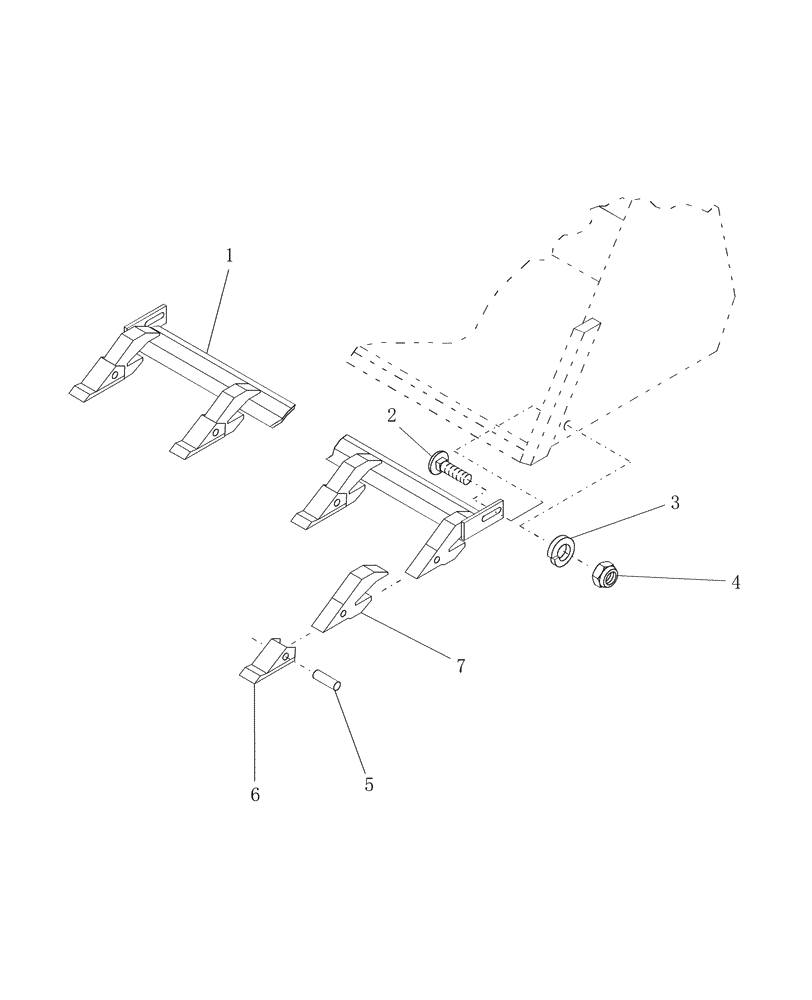

Запчасти Case IH LX132 (09-15) - TOOTH BAR - MATERIAL BUCKET (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Attachment, Tooth Bar, Bolt On 72 in

1шт.

Order 717226006 From Machinery Price List

1шт.

1

REF

INSTRUCTION

Attachment, Tooth Bar, Bolt On 84 in

1шт.

Order 716977006 From Machinery Price List

1шт.

2

280617

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

2шт.

3

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

NSS

NOT SOLD SEPARAT

PIN, Retaining

1шт.

6

NSS

NOT SOLD SEPARAT

TOOTH

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK

1шт.
