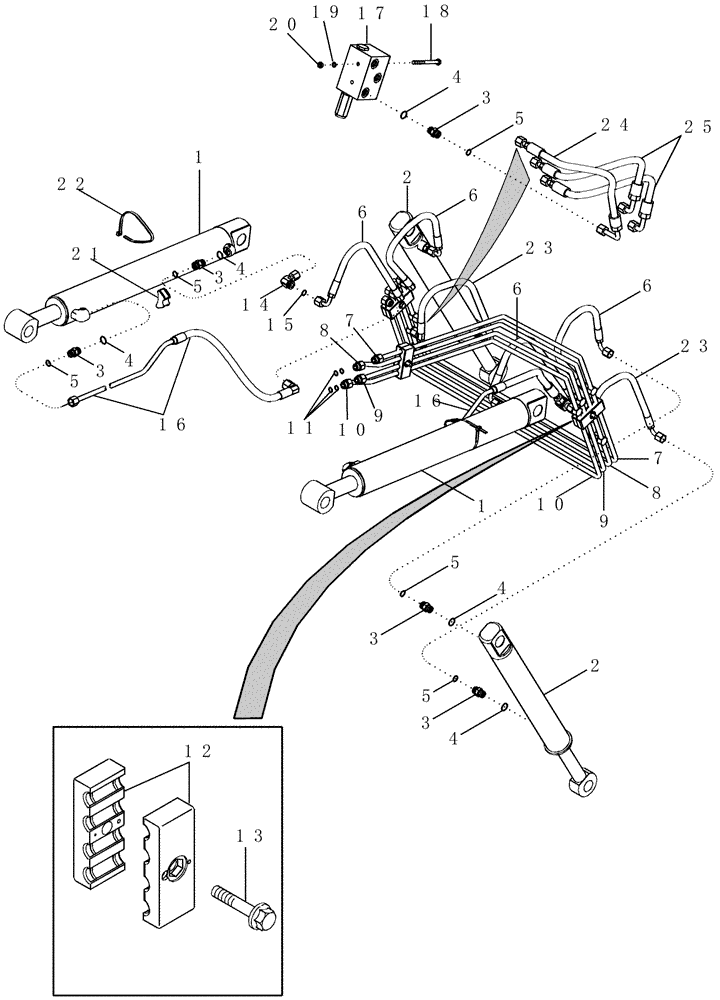

Запчасти Case IH LX132 (08-02) - HYDRAULICS - LOADER FRAME - WITH MECHANICAL SELF-LEVEL (08) - HYDRAULICS

1

450328A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 601.98mm Stroke

Lift

2шт.

See Figure 08-10

1шт.

2

448115A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 435.86mm Stroke

Bucket

2шт.

See Figure 08-12

1шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 4, 5

11шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

346111A1

HOSE

559 mm (22 in)

4шт.

7

86992234

HYD TUBE,0.50" OD

Bucket Cylinder, Head End, Inc. 11

1шт.

8

86992235

HYD TUBE,0.50" OD

Bucket Cylinder, Rod End, Inc. 11

1шт.

9

86984804

HYD TUBE,0.50" OD

Lift Cylinder, Head End, Inc. 11

1шт.

10

86992236

HYD TUBE,0.50" OD

Lift Cylinder, Rod End, Inc. 11

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

324067A1

BRACKET

6шт.

13

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3/8 x 2 in

3шт.

14

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 15

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

324951A2

HYD TUBE

Lift Cylinder

2шт.

17

86988707

VALVE PRESSURE RELIE

1шт.

See Figure 08-15

1шт.

18

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

19

492-11025

LOCK WASHER,1/4"

2шт.

20

425-104

NUT,1/4"-20, Cl 5

2шт.

21

D38648

BLOCK

2шт.

22

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.

23

87405450

HOSE ASSY.

711 mm (28 in)

2шт.

24

87405390

HOSE ASSY.

508 mm (20 in)

1шт.

25

87405388

HOSE ASSY.

432 mm (17 in)

2шт.
