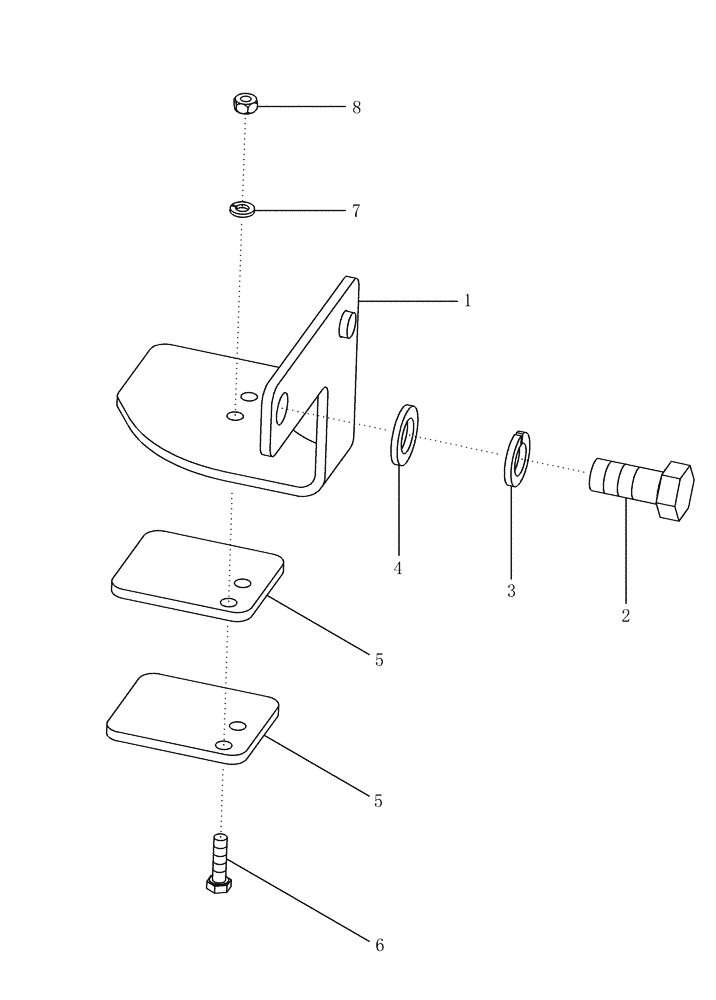

Запчасти Case IH LX132 (09-08) - OSCILLATION STOPS, JXU TRACTOR (09) - CHASSIS/ATTACHMENTS

1

87412266

BRACKET

Oscillation, Right Hand (Shown)

1шт.

1

87412267

BRACKET

Oscillation, Left Hand

1шт.

2

614-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 8.8, Full Thd

M20 x 45

2шт.

3

892-11020

LOCK WASHER,M20

2шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

5

87412163

PLATE

Spacer, Oscillation

4шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.
