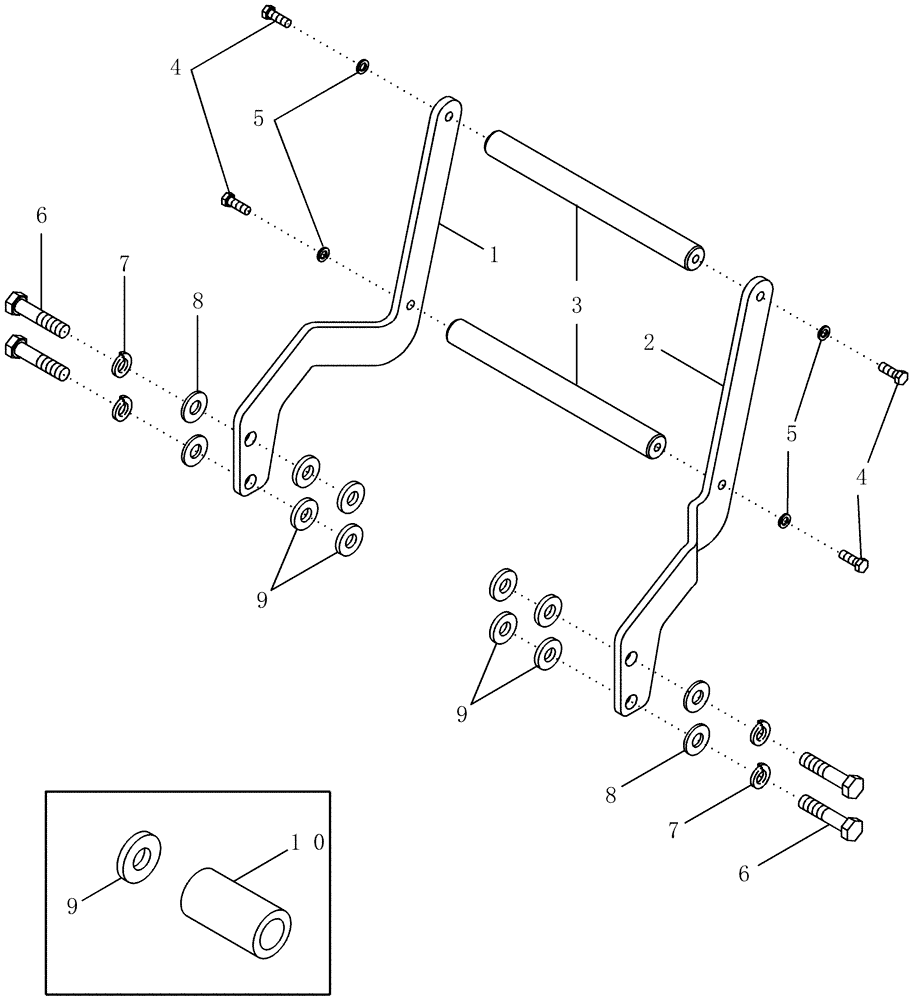

Запчасти Case IH LX132 (09-07) - PROTECTIVE ASSEMBLY - GRILLE, JX TRACTOR (09) - CHASSIS/ATTACHMENTS

1

87405461

BRACKET

Mounting, Left Hand

1шт.

2

86985425

BRACKET

Mounting, Right Hand

1шт.

3

345812A1

BAR

2шт.

4

613-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35; 8.8

4шт.

5

892-11012

LOCK WASHER,M12

4шт.

6

514-1015

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

Hex, M16 x 1.5 x 90, 8.8

4шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

9

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17,5 x 34 x 5 mm, Hardened

4-8шт.

10

87417306

SPACER

Grille Guard

4шт.

Used On Tractor Without Loader Frame Installed

1шт.
