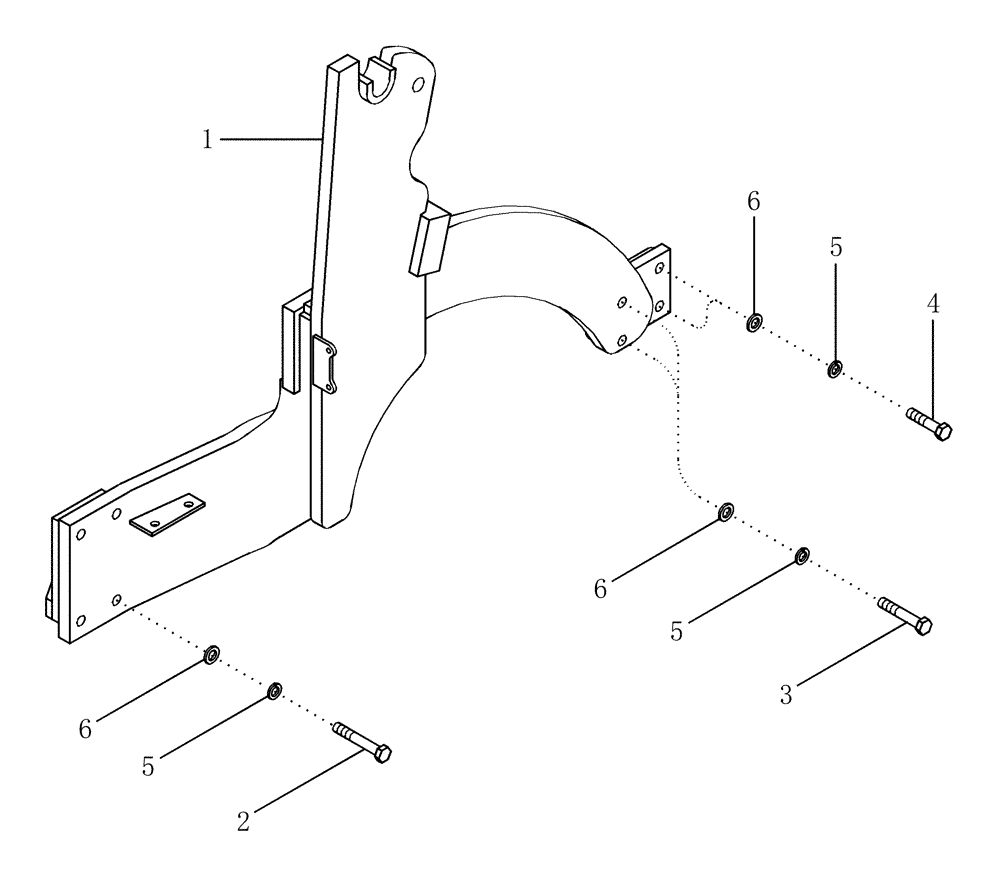

Запчасти Case IH LX132 (09-04) - MOUNTING BRACKETS, JX TRACTOR (09) - CHASSIS/ATTACHMENTS

1

442313A1

MOUNTING PARTS

Right Hand

1шт.

JX55 Tractor

1шт.

JX65 Tractor

1шт.

1

442311A1

MOUNTING PARTS

Right Hand

1шт.

JX75 Tractor

1шт.

JX85 Tractor

1шт.

1

442342A1

MOUNTING PARTS

Right Hand

1шт.

JX95 Tractor

1шт.

1

442312A1

MOUNTING PARTS

Left Hand (Not Shown)

1шт.

JX55 Tractor

1шт.

JX65 Tractor

1шт.

1

442310A1

MOUNTING PARTS

Left Hand (Not Shown)

1шт.

JX75 Tractor

1шт.

JX85 Tractor

1шт.

1

442340A1

MOUNTING PARTS

Left Hand (Not Shown)

1шт.

JX95 Tractor

1шт.

2

87010560

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

M16 x 100; 8.8

2шт.

3

514-1015

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

Hex, M16 x 1.5 x 90, 8.8

4шт.

4

514-1017

BOLT,Hex, M16 x 1.5 x 70mm, Cl 8.8

Hex, M16 x 1.5 x 70, 8.8

4шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

10шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.
