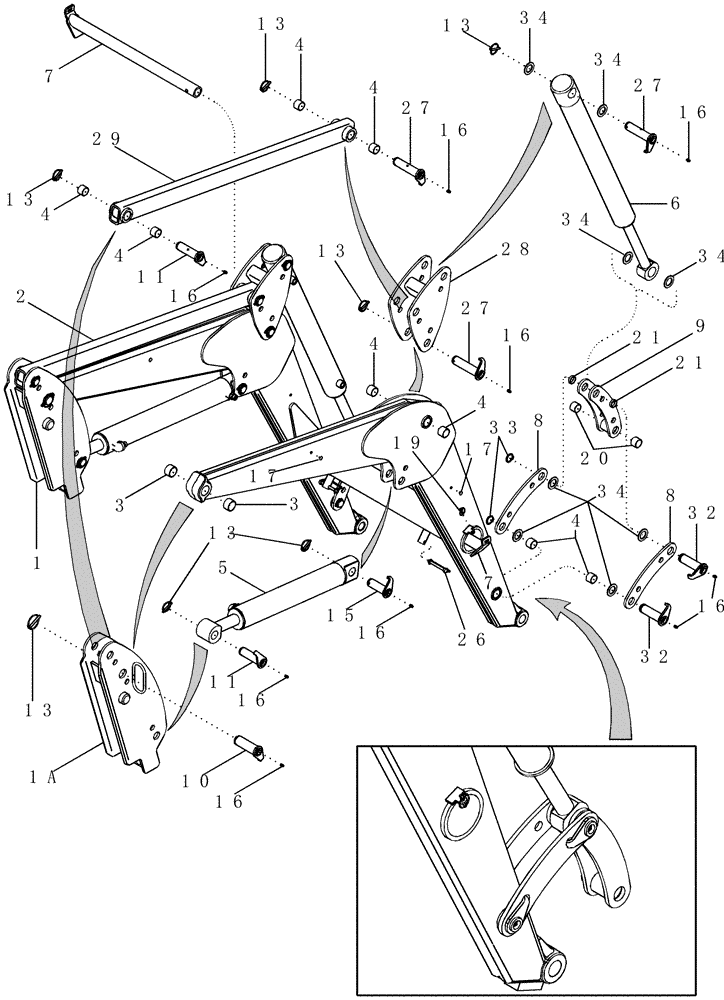

Запчасти Case IH LX132 (09-02) - FRAME - WITH MECHANICAL SELF-LEVEL (09) - CHASSIS/ATTACHMENTS

1

87406865

TOWER

Left Hand, Inc. 35

1шт.

1a

87406867

TOWER

Right Hand, Inc. 36

1шт.

2

87406876

FRAME ASSY

Loader, Inc. 3, 4 (12), 37

1шт.

3

318872A1

BUSHING

1-1/2 ID x 1 in

4шт.

4

310955A1

BUSHING

1-1/4 ID x 1 in

16шт.

5

450328A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 601.98mm Stroke

Lift

2шт.

See Figure 08-10

1шт.

6

448115A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 435.86mm Stroke

Bucket

2шт.

See Figure 08-12

1шт.

7

86985763

TUBE

Park

2шт.

8

86985939

LINK BLOCK

4шт.

9

86993053

LINK BLOCK

Inc. 20, 21

2шт.

10

338818A1

PIN

1-1/2 OD

2шт.

11

319461A2

PIN

1-1/4 OD

4шт.

12

A61560

LOCK PIN

2шт.

13

A30338

PIN

12шт.

15

303073A2

PIN

1-1/4 OD

2шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

18шт.

17

CL5306

PLUG

5шт.

19

302676A1

LINCH PIN

2шт.

20

310955A1

BUSHING

1-1/4 ID x 1 in

2шт.

21

86993051

COLLAR

2шт.

26

86591354

LOCK PIN

2шт.

27

86985433

CLEVIS PIN

6шт.

28

86984427

PIVOT PLATE

2шт.

29

86984429

LINK ASSY.

Inc. 4 (4)

2шт.

32

86985403

PIVOT PIN

4шт.

33

103-16125

SNAP RING,#125, Ext

4шт.

34

310565A1

WASHER,32mm ID x 51mm OD x 3.5mm Thk

Plastic

16шт.

35

86979960

DANGER DECAL

Safety, Not Illustrated

1шт.

See Figure 09-20

1шт.

36

86979962

WARNING DECAL

Safety, Not Illustrated

1шт.

See Figure 09-20

1шт.

37

86979961

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-20

1шт.
