(09-01) - FRAME - WITHOUT SELF-LEVEL

Запчасти Case IH LX132 (09-01) - FRAME - WITHOUT SELF-LEVEL (09) - CHASSIS/ATTACHMENTS

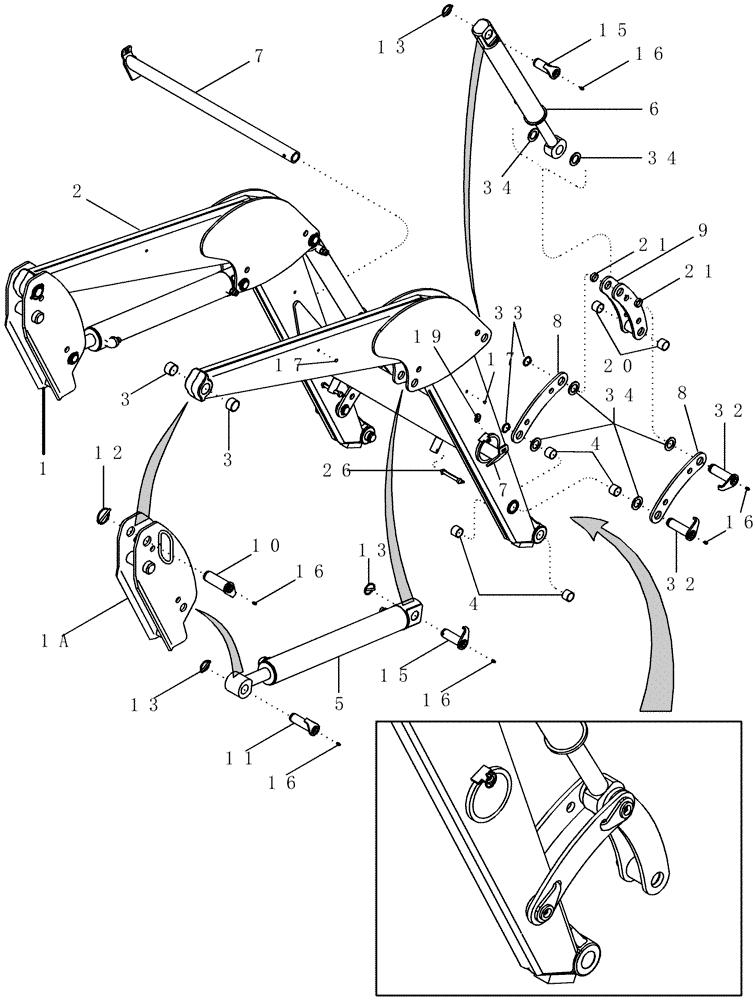

Схема запчастей Case IH LX132 - (09-01) - FRAME - WITHOUT SELF-LEVEL (09) - CHASSIS/ATTACHMENTS
34
19
1
21
15
13
8
13
16
17
6
16
12
13
20
3
9
15
11
32
32
7
8
3
34
34
21
5
16
4
10
4
1a
33
16
16
7
2
17
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87406857

TOWER

Left Hand, Inc. 36

1шт.

1a

87406850

TOWER

Right Hand, Inc. 35

1шт.

2

87406874

FRAME ASSY

Loader, Inc. 3, 4, 37

1шт.

3

318872A1

BUSHING

1-1/2 ID x 1 in

4шт.

4

310955A1

BUSHING

1-1/4 ID x 1 in

8шт.

5

450328A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 601.98mm Stroke

Lift

2шт.

See Figure 08-10

1шт.

6

450332A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 416.56mm Stroke

Bucket

2шт.

See Figure 08-11 (Cylinder is stamped 450333A1)

1шт.

7

86985763

TUBE

Park

2шт.

8

86985939

LINK BLOCK

4шт.

9

86993053

LINK BLOCK

Inc. 20,21

2шт.

10

338818A1

PIN

1-1/2 OD

2шт.

11

319461A2

PIN

1-1/4 OD

2шт.

12

A61560

LOCK PIN

2шт.

13

A30338

PIN

6шт.

15

303073A2

PIN

1-1/4 OD

4шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

12шт.

17

CL5306

PLUG

5шт.

19

302676A1

LINCH PIN

2шт.

20

310955A1

BUSHING

1-1/4 ID x 1 in

2шт.

21

86993051

COLLAR

2шт.

26

86591354

LOCK PIN

2шт.

32

86985403

PIVOT PIN

4шт.

33

103-16125

SNAP RING,#125, Ext

4шт.

34

310565A1

WASHER,32mm ID x 51mm OD x 3.5mm Thk

Plastic

12шт.

35

86979962

WARNING DECAL

Safety, Not Illustrated

1шт.

See Figure 09-20

1шт.

36

86979960

DANGER DECAL

Safety, Not Illustrated

1шт.

See Figure 09-20

1шт.

37

86979961

DANGER DECAL

Safety, Not Illustrated

2шт.

See Figure 09-20

1шт.
