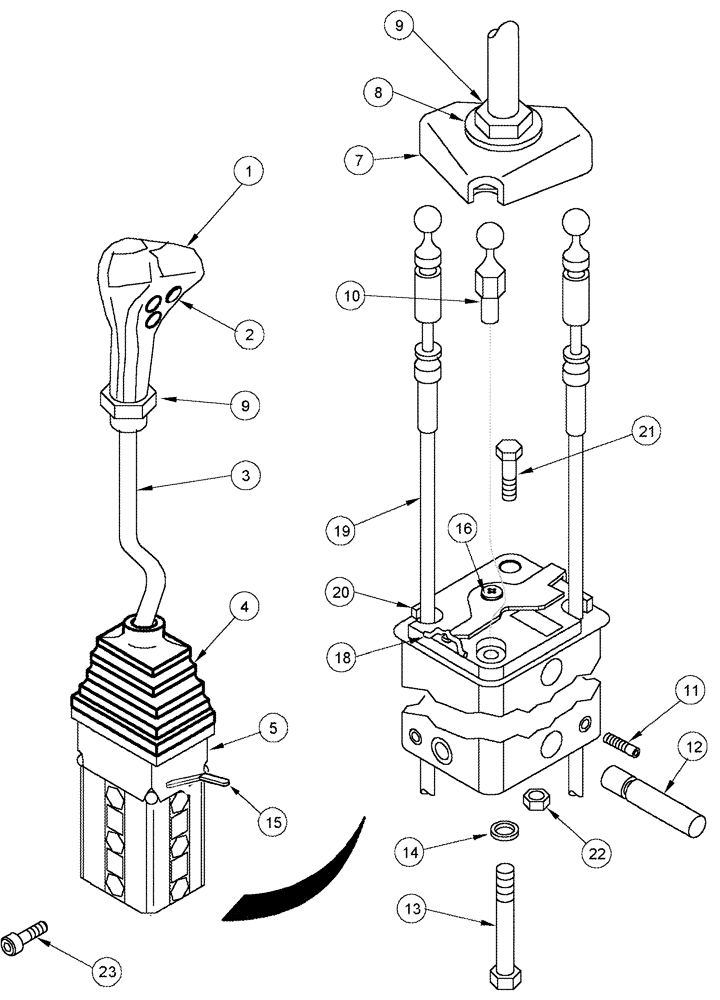

Запчасти Case IH LX132 (08-22) - CONTROL ASSEMBLY - 2 FUNCTION, CX70 - CX100 TRACTOR (08) - HYDRAULICS

246991A5

CONTROL

Inc. 1 - 22

1шт.

1

246982A2

KNOB

Inc. 2

1шт.

2

253280A1

PLASTIC PLUG

2шт.

3

302705A3

LEVER

1шт.

4

253274A1

BELLOWS

1шт.

5

247713A3

VALVE, CONTROL

1шт.

7

253276A1

COUPLING FLANGE

1шт.

8

95-31056

WASHER,1/2" x 1 1/4" x .109"

9/16 x 1-1/4 x 7/64

1шт.

9

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

2шт.

10

327141A1

BALL JOINT

1шт.

11

738-3422

PIN,M4 x 22, Coiled

3шт.

12

254284A1

TUBE,9 mm ID, 12 mm OD, 65.5 mm Length

2шт.

13

864-6080

HEX SOC SCREW,M6 x 80mm, Cl 8.8

1шт.

14

495-81102

WASHER,.266" x 1/2" x .060"

17/64 x 1/2 x 1/6

1шт.

15

327139A1

CONTROL LEVER

1шт.

16

301-1468

DRIVE SCREW,Drive, #10 x 1/2"

1шт.

18

436280A1

SPRING

1шт.

19

253271A3

CABLE SHEATH

2шт.

20

327140A1

PLATE

1шт.

21

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

22

832-10406

NUT,M6 x 1, Cl 8

1шт.

23

878-20814

SET SCREW,M8 x 14mm

2шт.
