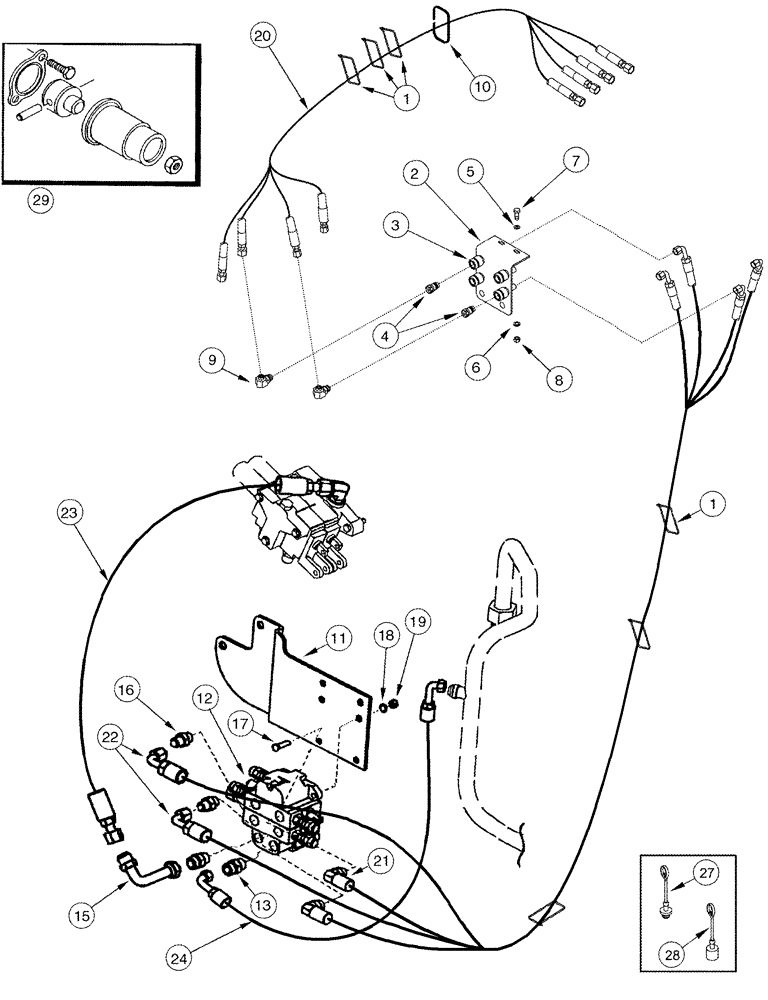

Запчасти Case IH LX132 (08-21) - HYDRAULICS - EXTERNAL VALVE 2 FUNCTION, CX70 - CX100 TRACTOR WITHOUT SELF LEVELING (08) - HYDRAULICS

1

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 14" TIE

6шт.

2

395326A1

BRACKET

1шт.

3

399490A1

COUPLING

4шт.

4

399491A1

QUICK MALE COUPLING

4шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

2шт.

9

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

4шт.

10

395325A1

GUIDE

1шт.

11

252390A2

SHEET

1шт.

12

395677A1

VALVE

1шт.

See Figure 08-23

1шт.

13

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

15

218-987

ADAPTER,90 Degree, 37 Degree Fl, 1 1/16"-12 Male x 1 1/16"-12 Fem

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

2шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

395316A1

HOSE

1803 mm (71 in)

4шт.

21

395323A1

HOSE

1753 mm (73 in)

2шт.

22

395322A1

HOSE

1753 mm (73 in)

2шт.

23

370038A1

HOSE

937 mm (37 in)

1шт.

24

357370A1

HOSE ASSY.

635 mm (25 in)

1шт.

27

327227A1

CAP

Male, Blue

1шт.

27

327229A1

CAP

Male, Yellow

1шт.

27

327231A1

CAP

Male, Red

1шт.

27

327232A1

CAP

Male, Green

1шт.

28

333717A1

CAP

Female, Blue

1шт.

28

333719A1

CAP

Female, Yellow

1шт.

28

333721A1

CAP

Female, Red

1шт.

28

333722A1

CAP

Female, Green

1шт.

29

252798A1

SET OF PARTS

Cable Attachment

1шт.
